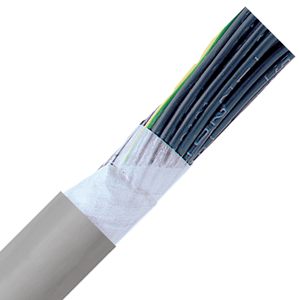

Lapp Ölflex FD 855 P Multiconductor cable, grey, 5 x 1.50mm²
Lapp Ölflex FD 855 P Multiconductor cable, grey, 5 x 1.50mm²

Lapp Ölflex FD 855 P Multiconductor cable, grey, 5 x 1.50mm²

This ÖLFLEX® FD 855 P continuous flex cable has a durable PUR jacket that resists oil and abrasion. It is halogen-free and suitable for extreme mechanical stress in cable tracks and gantry robots.
Vendor: Lapp Kabel
SKU: 0027577
Availability: Out Of Stock
Product type: Cable & Cable Management
Please hurry! Only 0 left in stock
Ask an expert
Description
Description
x
This ÖLFLEX® FD 855 P continuous flex cable has a durable PUR jacket that resists oil and abrasion. It is halogen-free and suitable for extreme mechanical stress in cable tracks and gantry robots.
Specifications
Specifications
x
Country of OriginGermany
Temperature: Operating-40°C to 80°C
Material: Inner Conductor / CoreFine wire strand made of tinned-copper wires
Material: Insulation / Inner sheathPVC / Dry llubricant / TPE
Material: Jacket / Outer SheathPU
Bending Radius• Bend radius of 5 x cable diameter
Diameter: External conduit size (mm)9mm
Weight 127,900 kg/km
Test Voltage3000 V
Documents
Documents
x
Download Datasheet
