Product Information

Product Name

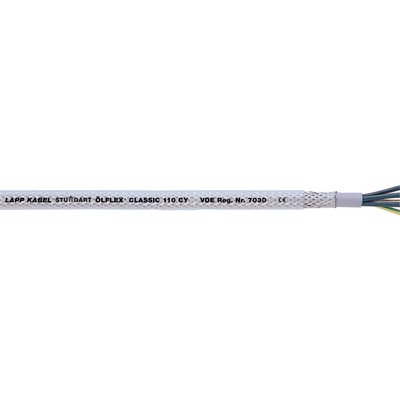

ÖLFLEX CLASSIC 110 CY 3G1,5

Product Description

ÖLFLEX® CLASSIC 110 CY - PVC control cable, VDE registered, screened, flexible and numbered for various applications, U0/U: 300/500V

Benefits

• Space-saving installation due to small cable diameters
• High electrical performance due to 4 kV test voltage

Application Range

• Plant engineering
• Industrial machinery
• Heating and air-conditioning systems
• Conveyor and transport systems
• In EMC-sensitive environments (electromagnetic compatibility)

Product Features

• Flame-retardant according to IEC 60332-1-2
• Good chemical resistance
• High degree of screening low transfer impedance (max. 250 Ω/km at 30 MHz)

Norm References / Approvals

VDE reg. no. 7030

Product Make-up

• Fine-wire strand made of bare copper wires
• PVC insulation LAPP P8/1
• PVC inner sheath, grey
• Tinned-copper braiding
• PVC outer sheath, transparent
• Cores twisted in layers

Technical Data

• Article number: 1135303
• Number of cores and mm² per conductor: 3 G1.5
• Outer diameter [mm]: 8.9
• Copper index (kg/km): 83
• Weight (kg/km): 136
