Description

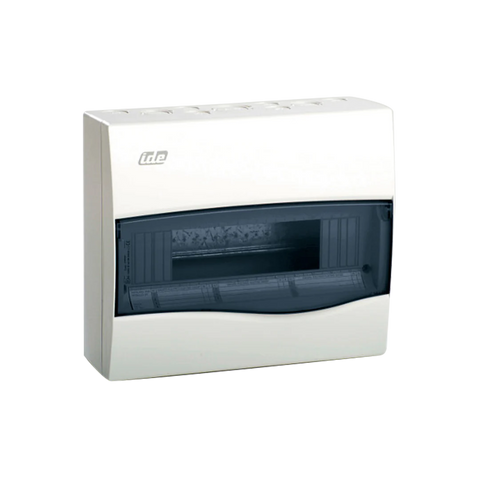

xThis surface-mounting enclosure is designed to house DIN rail mounted devices such as circuit breakers, contactors or terminals, providing 1x12 DIN module capacity within a 228x264x99mm housing. The transparent window allows visual inspection of internal components or indicators without opening the enclosure. It is typically used in control panels and distribution boards where protected surface mounting of modular DIN components is required.
Specifications
x| Exterior dimensions (Height x Width x Depth) | 228x264x99 mm |
| Number of modules | 1x12 DIN rail |
| Weight | 0.81 kg |
| Materials | Halogen-free plastic materials, Polystyrene |
| Lid-window-door material | Tinted PC |
| Degree of protection | IP40 |
| Resistance to impact | IK08 |
| Glow wire resistance | 650 ºC |
| Ball pressure test | 70 ºC |
| Ambient temperature range | -25 ºC / +40 ºC |
| Maximum operating voltage | 1000 V AC / 1500 V DC |
| Double insulation | Class II |
| Directive | 2014/35/EU |
| Standards | IEC 62208, IEC 61439-1 |
| CE mark | Yes |
| EAN | 8431044249506 |
| Customs tariff number | 85.38.10.00 |
| ETIM 8.0 | EC000214 |
