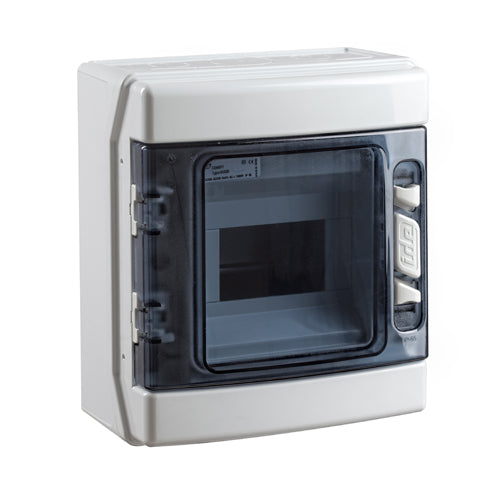

IDE Distribution box, watertight, 1x6, DIN, 231x202x113mm Part number CDN6PT

This watertight distribution box provides an enclosed housing for distribution components mounted on a DIN rail, with dimensions of 231x202x113mm and a 1x6 configuration. It is used to house and protect wiring connections and terminal arrangements in industrial and outdoor environments where ingress protection is required. Typical applications include field...
Vendor: IDE
Rubicon Industrial Technology is the exclusive South African distributor for IDE.
Availability: Out Of Stock
Product type: Control Panel
Please hurry! Only 0 left in stock
Description
Description
x

This watertight distribution box provides an enclosed housing for distribution components mounted on a DIN rail, with dimensions of 231x202x113mm and a 1x6 configuration. It is used to house and protect wiring connections and terminal arrangements in industrial and outdoor environments where ingress protection is required. Typical applications include field junction points and local distribution within automation and power circuits.

Specifications
Specifications
x
Product TypeABS watertight distribution boxes (Sealable)
Exterior Dimensions (HxWxD)231x202x113 mm
Number of Modules1x6 DIN rail
InstallationSurface
ColorRAL 7035
Weight0.92 kg
Cable Entry (Top)2xM25 - 1xM40
Cable Entry (Bottom)2xM25 - 1xM40
Cable Entry (Oblong rear)2xOB25/25
MaterialsHalogen-free plastic materials, Frame and base: ABS
UV ProtectionUnder ISO standard 4892-2, Method A: 500h
Lid-Window-Door MaterialTinted PC, UV protection
Degree of ProtectionIP65
Resistance to ImpactIK08
Glow Wire Resistance650 ºC
Ball Pressure Test70 ºC
Ambient Temperature Range-25 ºC / +60 ºC
Maximum Operating Voltage1000 V AC / 1500 V DC
Double InsulationClass II
Directive2014/35/EU
StandardsIEC 62208
EAN8431044129174
Customs Tariff Number85.38.10.00
ETIM 8.0EC000214
Documents
Documents
x
Download Datasheet
