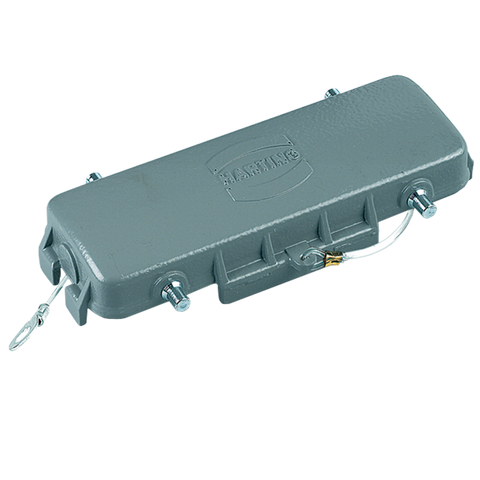

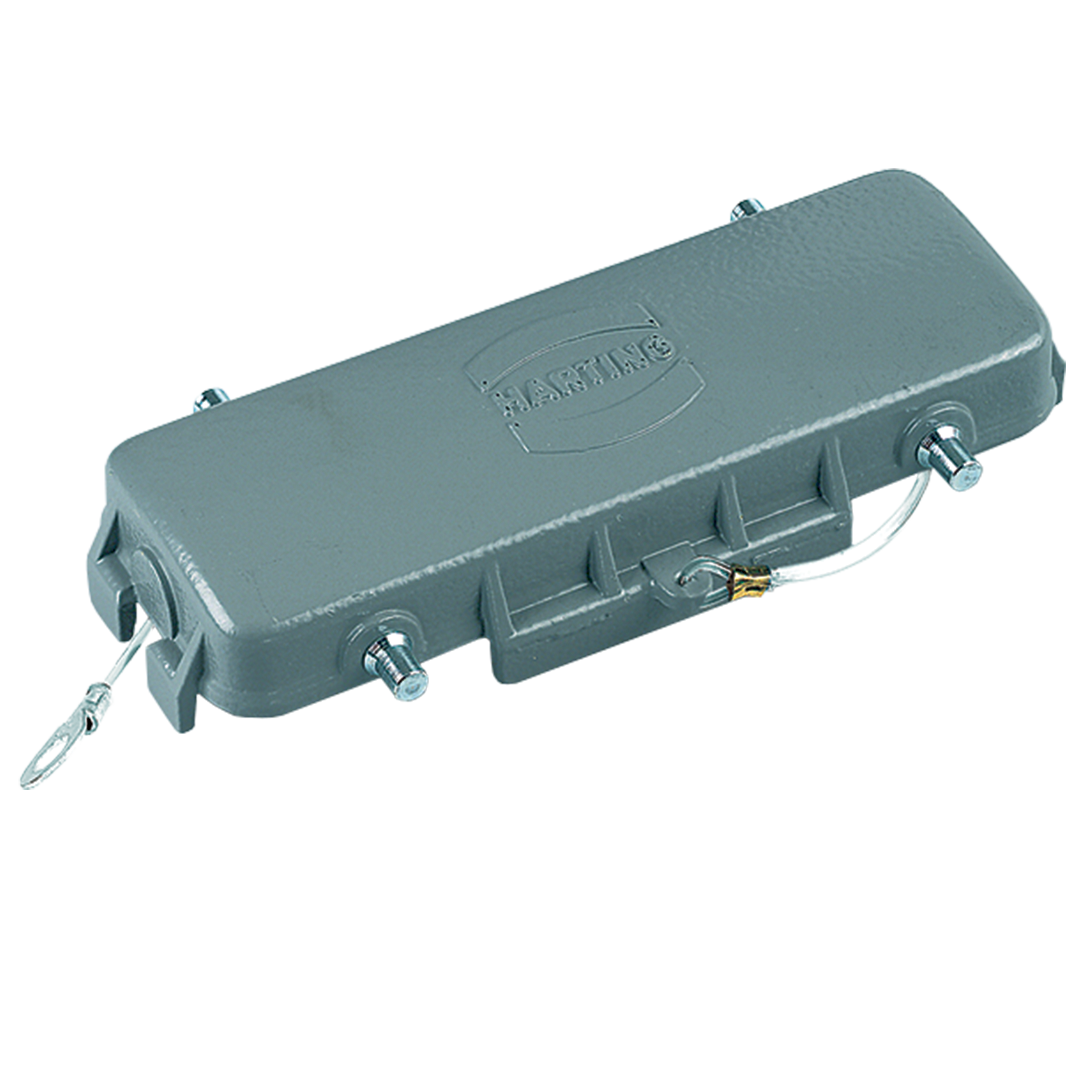

Harting Protection cover for bulkhead housing, size 24B

Product Overview

The Han B Protect Cover Die Cast for Base (SKU: 09300245425) is a heavy-duty die-cast protective cover designed specifically for Han® B series size 24B base housings. Features securing flex system with double locking lever mechanism and IP65 protection rating for maximum environmental protection in demanding industrial applications.

Key Features:

• Maximum Protection: Size 24B - designed for the largest Han® B series housings
• Die-Cast Construction: Robust metal construction for superior durability
• Securing Flex: Integrated retention system prevents cover loss during maintenance
• Double Locking Lever: Enhanced security with dual-lever locking mechanism
• IP65 Protection: Superior environmental sealing against dust and water ingress
• Base Housing Specific: Specifically designed for base housing applications

Technical Specifications:

• Article Number: 09 30 024 5425
• Category: Accessories
• Series: Han® B
• Size: 24B (maximum capacity)
• Type: Protective cover for base housings
• Construction: Die-cast metal
• Locking: Double locking lever
• Retention System: Securing flex prevents cover loss
• Protection Rating: IP65 (IEC 60529)

Compliance & Certifications:

• RoHS Compliant: Yes
• Material Flammability: UL 94 V-0 rating
• Operating Temperature: -40°C to +125°C
• ELV Status: Compliant
• REACH: No restricted substances
• Environmental Protection: IP65 rated for industrial environments
• Industrial Standards: Suitable for demanding industrial applications

Applications: Essential for protecting Han 24B base housings during maintenance, storage, or when connections are temporarily disconnected. The securing flex system prevents cover loss in industrial environments while the die-cast construction provides superior protection against impact and environmental hazards.

Compatibility:

• Compatible with Han® B series size 24B base housings
• Securing flex ensures cover remains attached to housing when not in use
• Double locking lever provides secure attachment during operation
• Specifically designed for base housing protection (not hood applications)
