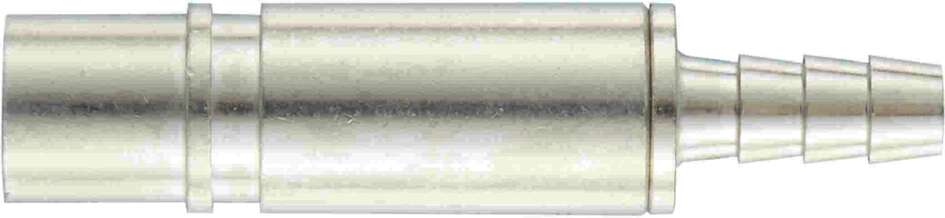

Harting Pneumatic contact, Female + valve, straight, brass

Product Overview

The pneumatic contact metal ID 4 female with valve is a high-performance Han-Modular® pneumatic female contact designed for demanding compressed air reception applications with integrated shut-off valve function and superior durability. This precision-engineered metal contact features 4mm inner diameter tube compatibility with robust brass construction and spring-loaded valve mechanism, optimized for industrial pneumatic systems requiring reliable air flow control, automatic shut-off capability, extended service life, and superior mechanical retention in high-cycle female connection applications.

Key Features

• Series: Han-Modular® Pneumatic Metal
• Type: Metal Pneumatic Contact with Integrated Cut-Off Valve (ID specification)
• Gender: Female with Shut-Off Valve
• Tube Inner Diameter: 4.0 mm (ID)
• Shut-off Function: With automatic shut-off valve (spring-loaded)
• Contact Material: Brass (Metal)
• Seal Material: High-grade elastomer
• Valve Spring: Stainless steel
• Maximum Operating Pressure: ≤10 bar (enhanced pressure rating)
• Operating Temperature: -40°C to +85°C (enhanced range)
• Manufacturing Process: Precision machined metal
• Configuration: Straight with spring-loaded valve
• Mating Cycles: ≥10,000 cycles (enhanced durability)
• Module Compatibility: Han® 09140034501 Pneumatic Module (3-pole for 4mm contacts)
• Certifications: UL/CSA approved for industrial applications

Technical Specifications

This female pneumatic contact is part of the Han-Modular® Pneumatic Module Metal system, featuring precision-machined brass construction with integrated spring-loaded shut-off valve technology. The contact accommodates 4mm inner diameter tubing and operates at pressures up to 10 bar with enhanced temperature range of -40°C to +85°C. The stainless steel valve spring automatically closes over an O-ring when disconnected, preventing air escape and maintaining system pressure. Engineered for at least 10,000 mating cycles with removable contact design for serviceability. Compatible with Han® 09140034501 Pneumatic Module for modular system integration.

Compliance & Environmental

• UL/CSA approved for industrial applications
• RoHS compliant construction
• ELV status compliant
• China RoHS e compliant
• REACH compliant materials
• Enhanced operating temperature range: -40°C to +85°C
• Enhanced operating pressure: 10 bar (vs. 8 bar for plastic variants)
• Industrial-grade brass construction
• High-cycle durability: ≥10,000 mating cycles
• Removable contact design for serviceability
• Automatic shut-off valve functionality
• Stainless steel valve spring for longevity

Applications

Ideal for industrial automation, flexible production systems, and compressed air distribution requiring reliable female pneumatic connections with automatic shut-off capability. Perfect for manufacturing equipment with frequent mating cycles, precision pneumatic systems requiring pressure retention, and robotic applications where automatic air shut-off is critical. The 4mm ID compatibility with integrated valve makes it suitable for flexible production lines, high-frequency pneumatic operations, and process automation where enhanced durability, automatic shut-off capability, and reliable modular connectivity are essential for operational efficiency and safety.
