Harting Insert, screw, male, size 6B, c/s 0.75 - 2.5mm²

Product Overview

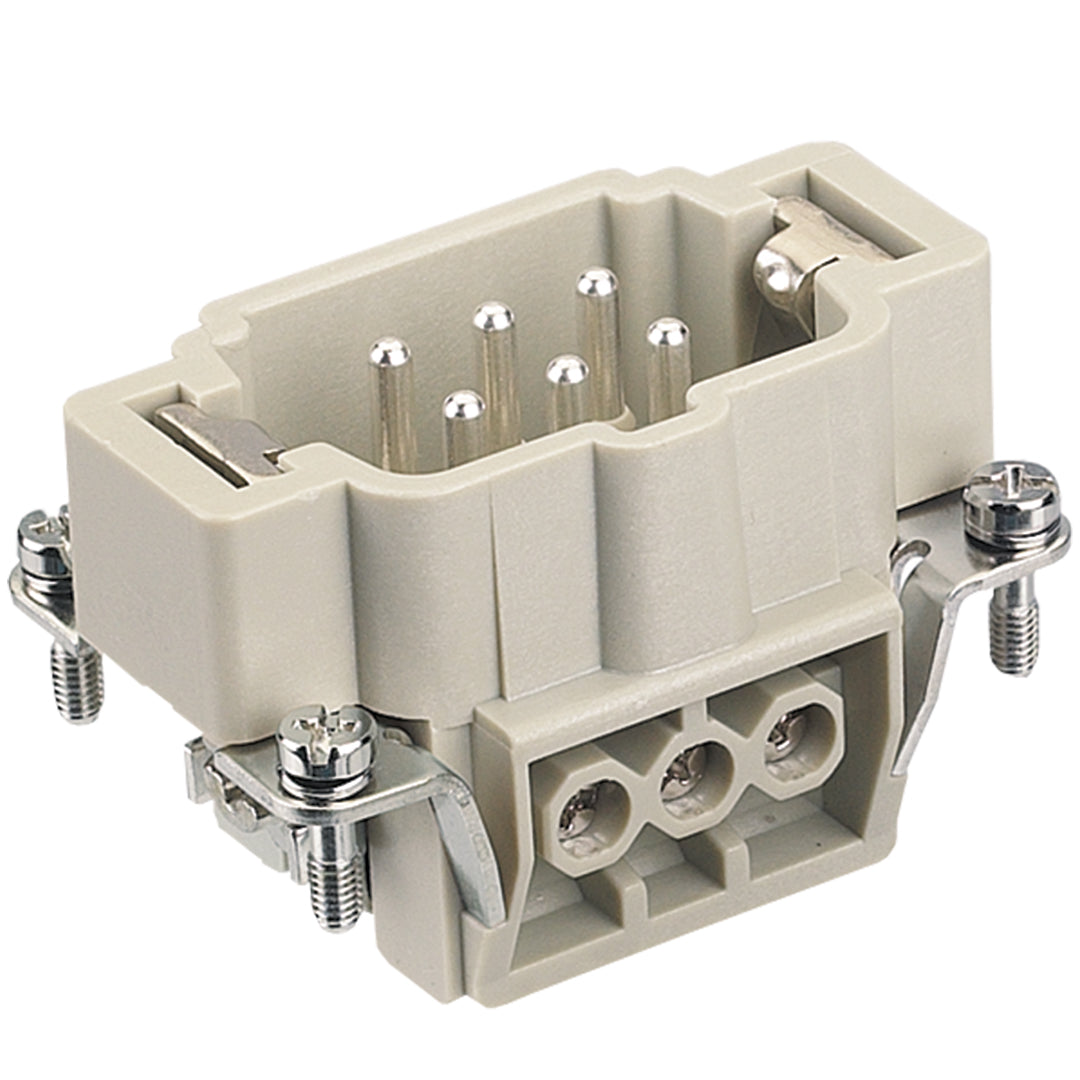

The Han E 06 Pos. M Insert Screw (SKU: 09330062601) is a robust 6-position male insert designed for heavy-duty power connector applications. Part of the renowned Han E® series, this screw-termination insert provides reliable 16A current capacity with secure mechanical connections suitable for demanding industrial environments. Featuring a 6+PE configuration in size 6B format, this insert delivers dependable power distribution for mechanical engineering, wind energy, and other applications requiring stable connections under vibration or shock loads.

Key Features:

• 6-Position Configuration: 6 contacts plus protective earth (PE) connection
• Screw Termination: Secure mechanical connection for reliable power transmission
• 16A Current Rating: Robust current capacity for industrial power applications
• Heavy-Duty Construction: Designed for demanding industrial environments
• Vibration Resistant: Locking clamp ensures high mechanical stability
• Temperature Resistant: Wide operating range from -40°C to +125°C
• Long Service Life: Mechanical working life ≥500 mating cycles
• Low Contact Resistance: ≤1 mΩ for efficient power transmission

Technical Specifications:

• Article Number: 09 33 006 2601
• Category: Inserts
• Series: Han E®
• Termination Method: Screw termination
• Gender: Male (plug)
• Number of Contacts: 6 + PE
• Rectangular Shell Size: 6B
• Current Rating: 16A
• Voltage Rating: 500V
• Wire Size Range: AWG 18 to AWG 14 (0.75mm² to 2.5mm²)
• Connection Type: M3 screws
• Contact Resistance: ≤1 mΩ
• Operating Temperature: -40°C to +125°C
• Color: Light grey (RAL 7032)
• Number of Rows: 2
• Mechanical Life: ≥500 mating cycles

Applications:

Essential for industrial power distribution requiring secure, removable connections in protected electrical areas. Ideal for mechanical engineering equipment, wind energy installations, industrial automation systems, control cabinet connections, motor control applications, and any heavy-duty application where reliable power transmission with vibration resistance is critical for operational safety and performance.

Compatibility:

• Housing Compatibility: Compatible with 6B size hoods and housings
• Series Compatibility: Works with Han E® power connector components
• Mating Insert: Pairs with Han E® 06 Pos. F Insert Screw (09330062701)
• System Integration: Designed for Han E® industrial connector systems
• Wire Compatibility: Accepts wire sizes from 0.75mm² to 2.5mm²
• Standard Compliance: UL508 certified
• RoHS Compliance: Yes

Installation & Tools:

• Termination Method: Screw connection with M3 connecting screws
• Wire Preparation: Strip wire to appropriate length for screw terminals
• Wire Range: Accommodates AWG 18 to AWG 14 (0.75mm² to 2.5mm²)
• Mechanical Security: Locking clamp provides vibration and shock resistance
• Assembly: Easy incorporation into Han E® housings
• PE Connection: Integrated protective earth terminal
• Quality Assurance: Designed for ≥500 mating cycles
• Professional Installation: Suitable for industrial assembly applications
