Harting Insert, screw, male, size 10B, c/s 0.75 - 2.5mm²

Product Overview

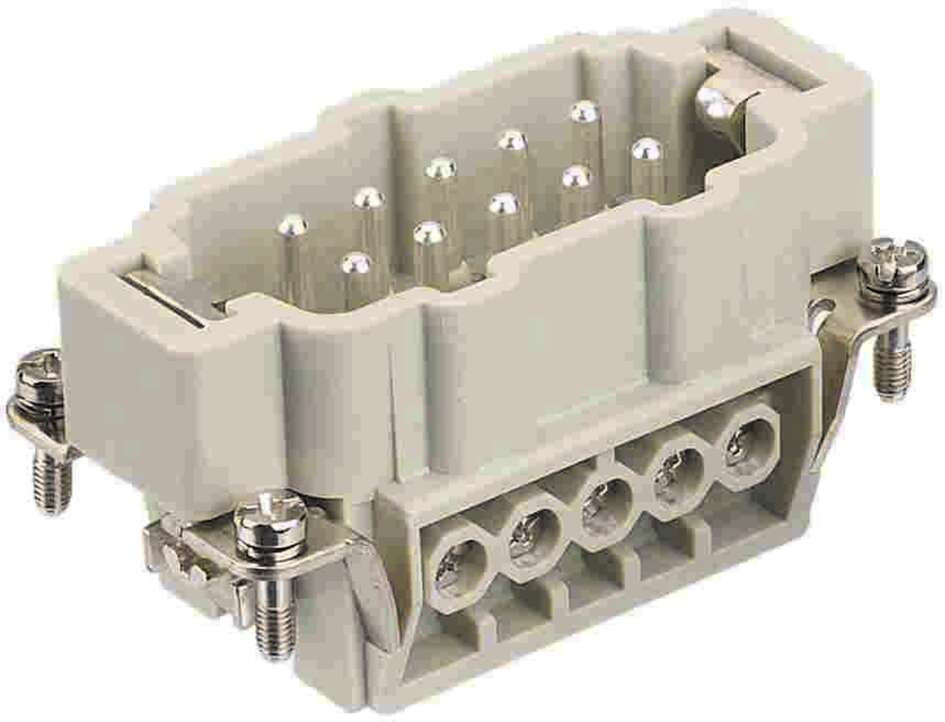

The Han E 10 Pos. M Insert Screw (SKU: 09330102601) is a robust 10-position male insert designed for heavy-duty power connector applications. Part of the renowned Han E® series, this screw-termination insert provides reliable 16A current capacity with secure mechanical connections suitable for demanding industrial environments. Featuring a 10+PE configuration in size 10B format, this insert delivers dependable power distribution for mechanical engineering, wind energy, and other applications requiring stable connections under vibration or shock loads.

Key Features:

• 10-Position Configuration: 10 contacts plus protective earth (PE) connection
• Screw Termination: Secure mechanical connection for reliable power transmission
• 16A Current Rating: Robust current capacity for industrial power applications
• Heavy-Duty Construction: Designed for demanding industrial environments
• Vibration Resistant: Locking clamp ensures high mechanical stability
• Temperature Resistant: Wide operating range from -40°C to +125°C
• Long Service Life: Mechanical working life ≥500 mating cycles
• UL/CSA/SEV Certified: Meets international safety standards

Technical Specifications:

• Article Number: 09 33 010 2601
• Category: Inserts
• Series: Han E®
• Termination Method: Screw termination
• Gender: Male (plug)
• Number of Contacts: 10 + PE
• Rectangular Shell Size: 10B
• Current Rating: 16A
• Voltage Rating: 500V
• Wire Size: Up to 2.5mm²
• Operating Temperature: -40°C to +125°C
• Mechanical Life: ≥500 mating cycles
• Certifications: UL, CSA, SEV
• RoHS Compliance: Yes

Applications:

Essential for industrial power distribution requiring secure, removable connections in protected electrical areas. Ideal for mechanical engineering equipment, wind energy installations, industrial automation systems, control cabinet connections, motor control applications, and any heavy-duty application where reliable power transmission with vibration resistance is critical for operational safety and performance.

Compatibility:

• Housing Compatibility: Compatible with 10B size hoods and housings
• Series Compatibility: Works with Han E® power connector components
• Mating Insert: Pairs with corresponding Han E® 10 Pos. F Insert Screw
• System Integration: Designed for Han E® industrial connector systems
• Wire Compatibility: Accepts wire sizes up to 2.5mm²
• Standard Compliance: UL508 certified
• BigPack Option: Available as 09330102601XL (250 pieces)

Installation & Tools:

• Termination Method: Screw connection with secure mechanical locking
• Wire Preparation: Strip wire to appropriate length for screw terminals
• Wire Range: Accommodates conductors up to 2.5mm²
• Mechanical Security: Locking clamp provides vibration and shock resistance
• Assembly: Easy incorporation into Han E® housings
• PE Connection: Integrated protective earth terminal
• Quality Assurance: Designed for ≥500 mating cycles
• Professional Installation: Suitable for industrial assembly applications
