Harting Insert, screw, female, size 10B, c/s 0.75 - 2.5mm²

Product Overview

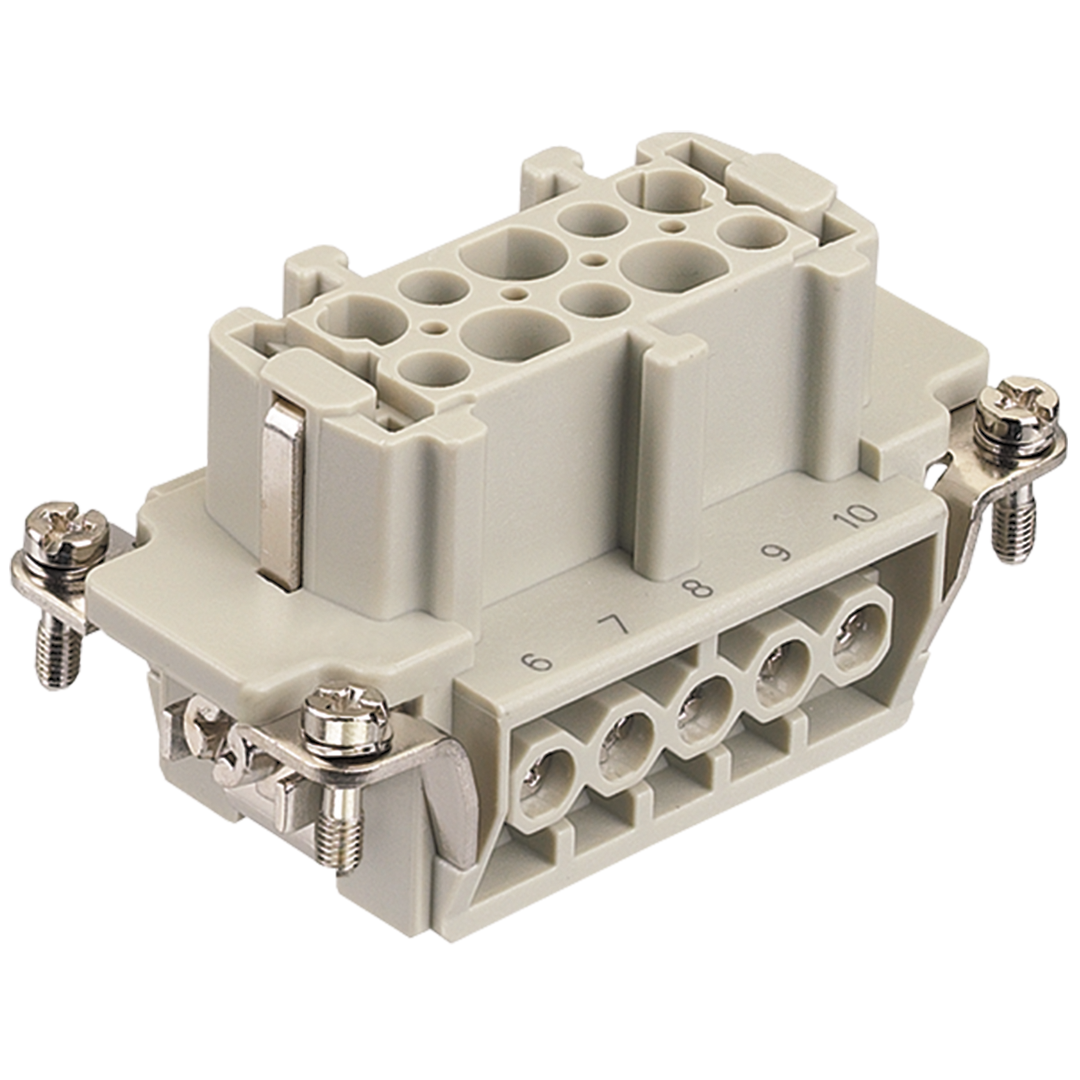

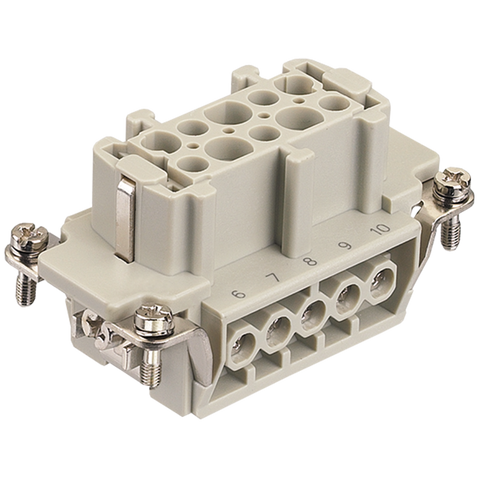

The Han E 10 Pos. F Insert Screw (SKU: 09330102701) is a robust 10-position female insert designed for heavy-duty power connector applications. Part of the renowned Han E® series, this screw-termination insert provides reliable 16A current capacity with secure mechanical connections suitable for demanding industrial environments. Featuring a 10+PE configuration in size 10B format with durable polycarbonate construction, this insert delivers dependable power reception for industrial applications requiring stable connections under challenging conditions.

Key Features:

• 10-Position Configuration: 10 female contacts plus protective earth (PE) connection
• Screw Termination: Secure mechanical connection with wire protection
• 16A Current Rating: Robust current capacity for industrial power applications
• Heavy-Duty Construction: Durable polycarbonate housing in RAL 7032 pebble grey
• Silver-Plated Contacts: Copper alloy contacts with silver plating for superior conductivity
• Temperature Resistant: Wide operating range from -40°C to +125°C
• Long Service Life: Mechanical working life ≥500 mating cycles
• Compact Design: Dimensions of 34x34.6x63.8mm for space-efficient installations

Technical Specifications:

• Article Number: 09 33 010 2701
• Category: Inserts
• Series: Han E®
• Termination Method: Screw termination
• Gender: Female (receptacle)
• Number of Contacts: 10 + PE
• Rectangular Shell Size: 10B
• Current Rating: 16A
• Voltage Rating: 500V
• Wire Size Range: 0.75mm² to 2.5mm²
• Contact Material: Copper alloy
• Contact Surface: Silver plated
• Housing Material: Polycarbonate (PC)
• Color: RAL 7032 (pebble grey)
• Operating Temperature: -40°C to +125°C
• Mechanical Life: ≥500 mating cycles
• Dimensions: 34 x 34.6 x 63.8mm

Applications:

Essential for industrial power distribution requiring secure, removable connections in protected electrical areas. Ideal for mechanical engineering equipment, wind energy installations, industrial automation systems, control cabinet connections, motor control applications, and any heavy-duty application where reliable power reception with vibration resistance is critical for operational safety and performance.

Compatibility:

• Housing Compatibility: Compatible with 10B size hoods and housings
• Series Compatibility: Works with Han E® power connector components
• Mating Insert: Pairs with Han E 10 Pos. M Insert Screw (09330102601)
• System Integration: Designed for Han E® industrial connector systems
• Wire Compatibility: Accepts wire sizes from 0.75mm² to 2.5mm²
• Standard Compliance: UL508 certified
• RoHS Compliance: Yes

Installation & Tools:

• Termination Method: Screw connection with wire protection
• Wire Preparation: Strip wire to appropriate length for screw terminals
• Wire Range: Accommodates conductors from 0.75mm² to 2.5mm²
• Mechanical Security: Locking design provides vibration and shock resistance
• Assembly: Easy incorporation into Han E® housings
• PE Connection: Integrated protective earth terminal
• Quality Assurance: Designed for ≥500 mating cycles
• Professional Installation: Suitable for industrial assembly applications
