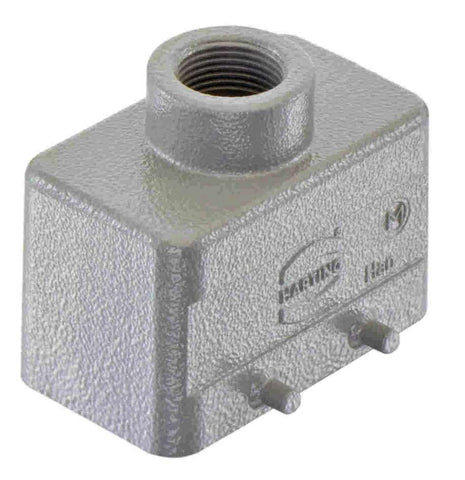

Harting Hood, top entry, M20, double locking, size 10B Part number 19300101420

Product Overview

The Han B Hood Top Entry LC 4 Pegs M20 is a low construction connector hood for industrial applications requiring vertical cable routing with maximum positioning stability. Features aluminum die-cast construction with quadruple peg mounting system and top entry M20 cable gland for superior alignment precision and enhanced mounting security in demanding installations.

Key Features

• Low construction (LC) design for minimal height profile
• Top entry configuration for vertical cable routing
• Quadruple peg mounting system for maximum stability
• Size 10B with M20 top cable entry
• Aluminum die-cast construction, RAL 7037 finish
• Enhanced positioning accuracy with 4-peg alignment
• IP65 protection, -40°C to +125°C operation

Technical Specifications

• Housing Size: 10B
• Construction: Low construction (LC)
• Cable Entry: Top entry, 1 x M20
• Mounting: 4 pegs for maximum positioning stability
• Temperature Range: -40°C to +125°C
• Protection: IP65, NEMA 4/4X/12
• Material: Aluminum die-cast, powder-coated RAL 7037
• Mating Cycles: ≥500 cycles
• Standards: IEC 60529, UL 50/UL 50E

Installation Details

• Low construction minimizes vertical space requirements
• Quadruple peg system ensures maximum positioning accuracy
• Top entry design for vertical cable access and management
• Compatible with Han 10B series bases and inserts

Applications

• Precision applications requiring maximum alignment stability
• Vibration-prone environments needing superior mounting security
• Industrial systems where positioning accuracy is critical
• Equipment requiring low profile with enhanced mounting precision

Compatibility

• Compatible with Han 10B series bases and inserts
• Part of Han B® connector system
• Low construction hood with maximum positioning stability

Environmental Protection

• Temperature: -40°C to +125°C operational
• IP Rating: IP65 protection against dust and water
• Construction: Corrosion-resistant aluminum die-cast
• Durability: ≥500 mating cycles with enhanced stability

Certifications and Compliance

• Standards: IEC 60529, UL 50/UL 50E
• Environmental: RoHS compliant
• Flammability: V-0 according to UL 94
• Origin: Germany
