Harting Han D-Sub module, profibus, T-function, 0.08-0.52mm² Part number 09140093151

Product Overview

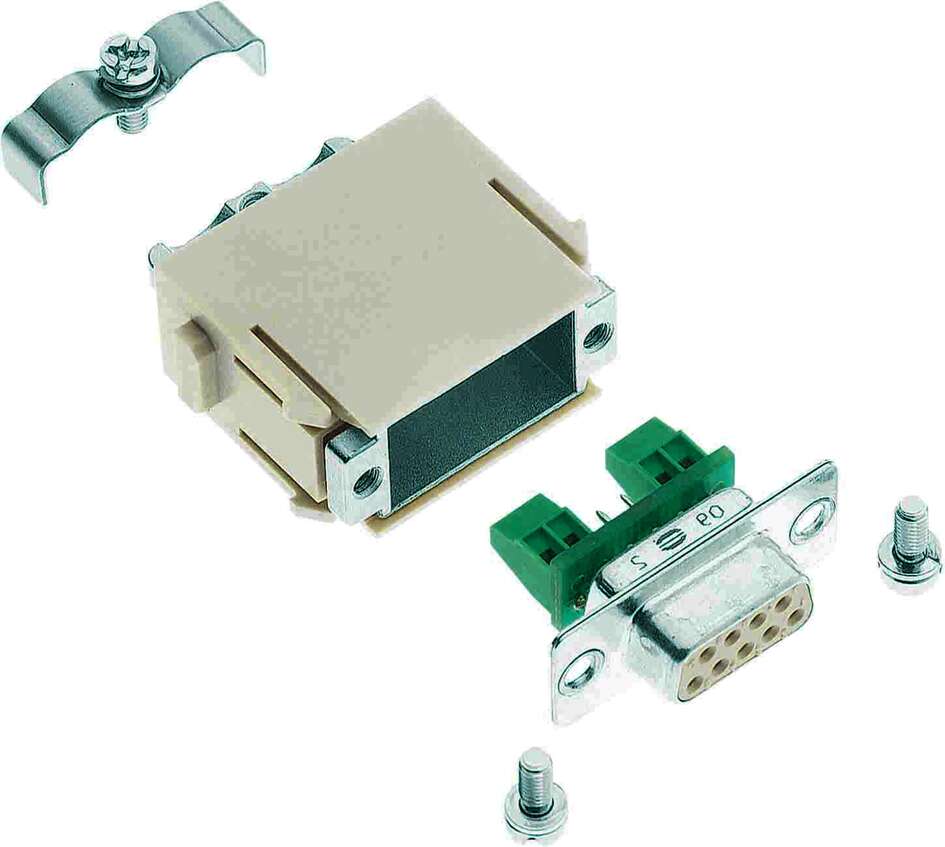

The Han D-Sub module, Profibus T function is a specialized data transmission module designed for the HARTING Han-Modular® connector system with integrated T-functionality for RS 485-based bus systems. This single-module female insert features screw termination and is engineered for reliable Profibus network connections with T-junction capability. The module accommodates conductor cross-sections from 0.08 to 0.52 mm² and provides robust data transmission capabilities within the modular Han-Modular® system with 9 contacts specifically designed for Profibus network applications.

Key Features

• Series: Han-Modular®
• Category: Data Transmission Module
• Type: Han® D-Sub module
• Module Size: Single module
• Termination Method: Screw termination
• Gender: Female
• Contacts: 9
• Current Rating: 5 A
• Voltage Rating: 50 V (rated voltage), 30 V (UL rated)
• Conductor Cross-Section: 0.08 - 0.52 mm²
• Rated Impulse Voltage: 0.8 kV
• Material: Polycarbonate (PC), Zinc die-cast
• Color: RAL 7032 (pebble grey)
• Special Feature: T-functionality for RS 485 bus systems

Technical Specifications

This female Han D-Sub module provides reliable Profibus data transmission capabilities with T-functionality for RS 485-based bus systems. The module features a rated current of 5A with conductor cross-section accommodation from 0.08 to 0.52 mm² specifically designed for Profibus network cables. The module supports a rated voltage of 50V with 30V UL rating and rated impulse voltage of 0.8kV. The robust construction combines polycarbonate and zinc die-cast materials with RAL 7032 grey finish for durability in industrial environments. The T-functionality enables the creation of branch connections in Profibus networks, allowing for flexible network topologies. The 9-contact female D-Sub configuration provides standard Profibus connectivity while maintaining the modular flexibility of the Han-Modular® system. Note: The use of guide pins and sockets is mandatory for proper installation.

Compliance & Environmental

• Rated voltage: 50V (30V UL rated)
• Rated impulse voltage: 0.8kV
• Current rating: 5A
• UL 94 V-0 flammability classification
• Industrial-grade polycarbonate and zinc die-cast construction
• Professional RAL 7032 finish
• Han-Modular® system compatibility
• RS 485 bus system compatibility

Applications

Ideal for industrial automation systems, manufacturing equipment, and machinery requiring reliable Profibus network connections with T-junction functionality. Perfect for applications where RS 485-based bus systems need branch connections or network expansion points within modular connector assemblies. Excellent for process control systems, factory automation networks, and industrial communication systems where Profibus connectivity with T-functionality is essential for creating flexible network topologies. The T-function capability makes it particularly suitable for applications requiring network branching, drop connections, or distributed control systems where multiple devices need to be connected to a single Profibus segment while maintaining signal integrity and network performance.
