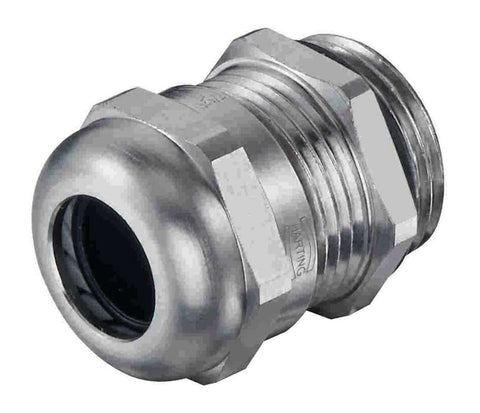

Harting Han CGM-M Cable gland, wrench size 22, M20 x 1.5.

Product Overview

The Han CGM-M M20x1.5 cable gland (article no. 19 00 000 5080) is a metal cable gland designed for Han series industrial connectors. Features nickel-plated brass construction with M20x1.5 metric thread and 5-9mm cable diameter range, providing IP68/IP69K environmental protection for industrial automation and control applications.

Key Features:

• M20x1.5 metric thread for secure installation
• 5-9mm cable diameter clamping range
• Brass construction with nickel-plated surface finish
• IP68/IP69K protection rating (IEC 60529/ISO 20653)
• Polyamide (PA) clamping ring with NBR seal
• 22mm wrench size for easy installation
• Operating temperature range: -40°C to +100°C
• Compatible with Han CGM-M series connectors

Applications:

Han series industrial connectors, cable plug assemblies, panel mounting housings, surface mounting applications, industrial automation systems, control cabinets, manufacturing equipment, process control installations.

Technical Specifications:

• Category: Cable glands for industrial connectors
• Series Compatibility: Han CGM-M
• Thread: M20x1.5 metric thread
• Cable Diameter Range: 5-9mm
• Material: Brass with nickel-plated finish
• Seal Material: NBR (Nitrile Butadiene Rubber)
• Clamping Ring: Polyamide (PA)
• Protection Rating: IP68, IP69K/IPX9K
• Operating Temperature: -40°C to +100°C
• Tightening Torque: ≤10 Nm (cable dependent)
• Wrench Size: 22mm
• Width Across Corners: 24.4mm

Environmental Protection

Provides complete sealing from dust and water ingress with IP68 rating for submersion protection and IP69K/IPX9K rating for high-pressure, high-temperature wash-down applications. The NBR seal and polyamide clamping ring ensure reliable long-term environmental protection.

System Benefits:

• Excellent cable retention and strain relief
• Waterproof and dust-tight sealing
• Corrosion-resistant nickel-plated finish
• Easy field installation with standard tools
• Compatible with non-armoured cables
• Suitable for harsh industrial environments

Standards:

IEC 60529 (IP68), ISO 20653 (IP69K/IPX9K), UL 514B, CSA-C22.2 No. 18.3, DNV GL approved.

Compliance:

RoHS compliant with exemptions, ELV compliant, China RoHS 50, UL/CSA certified, marine approved (DNV GL). Contains lead and nickel as per regulatory disclosures.
