Harting D-Sub hood, shell housing, top/side entry, thermoplastic

Product Overview

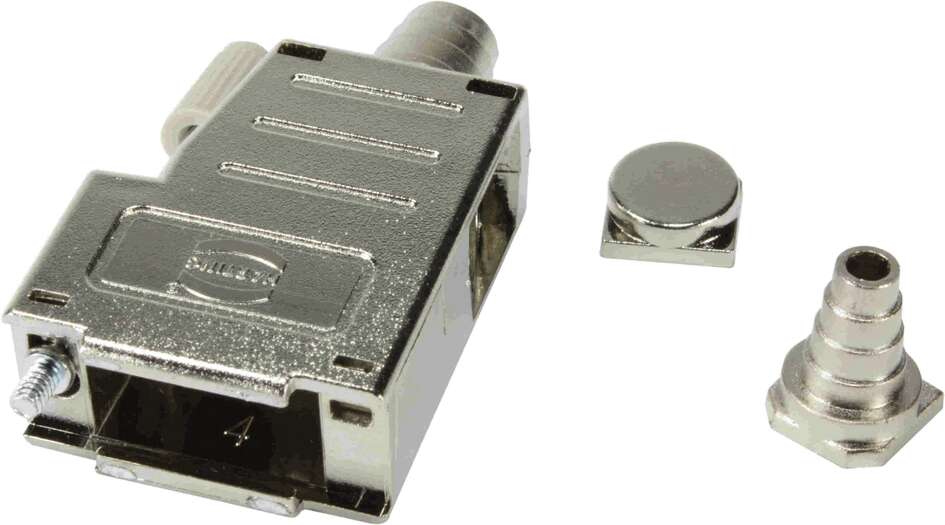

The D-Sub hood 9-pole top & side entry 4-40 (article no. 09 67 009 0435) is a metallized thermoplastic shell housing designed for 9-pole D-Sub connectors. Features flexible top and side cable entry options with 4-40 UNC threaded knurled screws for secure connection and includes grommet set halves for complete cable management.

Key Features:

• 9-pole D-Sub hood (Size: D-Sub 1)
• Dual cable entry: top and side entry options
• Metallized thermoplastic construction for EMI shielding
• 4-40 UNC knurled screw locking mechanism
• Includes grommet set halves for cable sealing
• Lockable cover design for security

Applications: D-Sub connector assemblies, industrial control systems, data communication interfaces, instrumentation connections, automation equipment requiring cable strain relief and EMI protection.

Technical Specifications:

• Size: D-Sub 1 (9-pole)
• Material: Thermoplastic with metallized surface
• Cable Entry: Top and side entry (dual options)
• Thread: 4-40 UNC knurled screws
• Cable Diameter: Up to 11.5mm
• Ambient Temperature: -55°C to +110°C
• Tightening Torque: 0.4 Nm (locking and cable clamp screws)
• Dimensions: 40mm (L) x 31.5mm (W) x 15mm (H)

Design Features:

• 2-Part Construction: Separable design for easy assembly
• Lockable Cover: Secure connection protection
• Single Screw Design: Hood provided with one screw opposite cable entry
• Grommet Halves: Included for complete cable sealing
• Metallized Surface: EMI shielding and enhanced durability

Benefits:

• Flexible cable routing with top or side entry options
• Metallized surface provides EMI protection
• Secure 4-40 UNC threading for reliable connections
• Wide temperature range for harsh environments
• Complete sealing solution with included grommets

Compliance: RoHS compliant with exemptions, ELV status compliant
