Harting Copper cable, Cat5, class D, 4x AWG 22/1, 20m Part number 09456000130

Product Overview

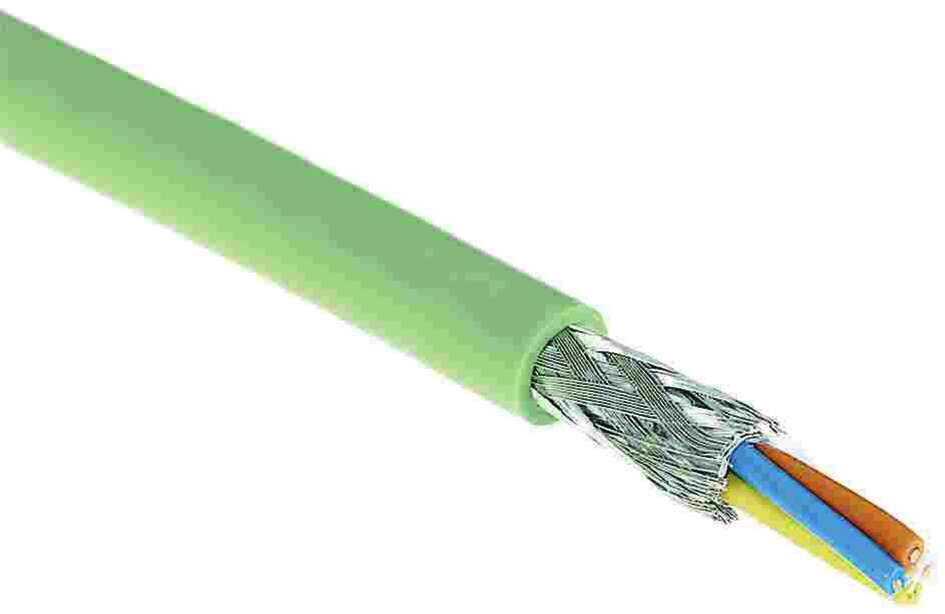

The HAR PROFINET Type A 4xAWG22/1 PVC 20m cable (article no. 09 45 600 0130) is an industrial Ethernet bulk cable for fixed PROFINET installations. Features four twisted pairs of 22 AWG solid core conductors with PVC jacket, designed for permanent installations without motion after commissioning.

Key Features:

• PROFINET Type A compliant for fixed installations, Cat. 5 Class D up to 100 MHz
• 4-core AWG 22/1 solid core, shielded construction
• Standard cable for permanent installations without flexing
• 20-meter length, 6.3-6.7mm diameter
• UL E333432 verified Cat 5E, CMG 75°C rating

Applications: Fixed PROFINET installations, permanent network infrastructure, control panel backbone wiring, stationary industrial equipment connections.

Technical Specifications:

• Transmission: Cat. 5 Class D, 10/100 Mbit/s, 100Ω impedance
• Construction: 4 x AWG22/1 solid core, shielded, PVC jacket
• Electrical: 2kV test voltage, ≤10 mΩ/m coupling attenuation @ 10 MHz
• Cable Diameter: 6.3-6.7mm
• Weight: Approximately 27.2 g/m, 544g total

Standards: Cat 5E verified, UL E333432, CSA-C22.2 No. 214, PROFINET Type A compliant

Cable Marking: "HARTING INDUSTRIAL ETHERNET STANDARD CABLE CAT 5 PLUS * 22AWG (SHIELDED) (UL) E333432 VERIFIED CAT 5E CMG 75°C or PLTC or AWM 21694 600V FT4 SUN RES"

Compliance: RoHS, ELV, China RoHS, REACH compliant
