Description
xProduct Overview

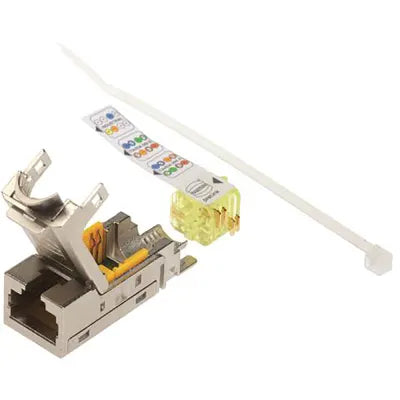

The preLink RJ45 Jack HIFF Set AWG 22/24 is a female module from the preLink Ethernet cabling system for industrial and commercial network applications requiring reliable RJ45 connectivity with HIFF (High Installation Flexibility Format) design. Features preLink IDC insulation displacement termination technology for secure wire connections with AWG 22/24 cable compatibility for professional Ethernet installations.
Key Features
- preLink series RJ45 female module with HIFF version design
- IDC (Insulation Displacement Connection) termination technology
- AWG 22/24 cable compatibility (0.22-0.32 mm² conductor cross-section)
- HIFF (High Installation Flexibility Format) for versatile mounting
- Professional Ethernet connectivity solution
- Tool-free wire termination for easy installation
Technical Specifications
- Series: preLink® Ethernet cabling system
- Element Type: Female module (RJ45 Jack)
- Termination: preLink® IDC insulation displacement termination
- Size: HIFF version (High Installation Flexibility Format)
- Conductor Cross-Section: 0.22-0.32 mm² (AWG 22/24)
- Interface: RJ45 Ethernet standard
- Installation: Tool-free IDC termination
- Standards: Ethernet connectivity standards
Installation Details
- HIFF design provides high installation flexibility and versatile mounting options
- IDC termination technology enables secure wire connections without stripping
- Tool-free installation process for quick and reliable terminations
- Compatible with AWG 22/24 cables for standard Ethernet applications
Applications
- Industrial Ethernet networks and automation systems
- Commercial building network installations
- Data center and server room connections
- Office and workplace network infrastructure
- Structured cabling systems requiring reliable RJ45 connectivity
- Network equipment and patch panel installations
Compatibility
- Compatible with preLink® Ethernet cabling system
- Standard RJ45 Ethernet interface for universal connectivity
- AWG 22/24 cable compatibility for standard network cables
- HIFF format for flexible installation configurations
Environmental Protection
- Construction: Professional-grade materials for reliable network performance
- Termination: Secure IDC technology for stable connections
- Performance: Reliable Ethernet connectivity in demanding applications
- Installation: Tool-free design for consistent termination quality
Certifications and Compliance
- Standards: Compliance with Ethernet connectivity standards
- Performance: Professional-grade network connectivity
- Installation: Tool-free IDC termination technology
- Origin: Germany
Download existing graphical data for this product:
Specifications
x| Category | Connectors |
| Series | preLink® |
| Element | Female module |
| Specification | With termination block |
Version
| Termination method | preLink® IDC insulation displacement termination |
| Size | HIFF version |
Technical characteristics
| Conductor cross-section | 0.22 - 0.32 mm² |
| Conductor cross-section [AWG] | AWG 24 - AWG 22 |
| Transmission characteristics | Cat. 6A Class EA up to 500 MHz |
| Data rate | 10 Mbit/s, 100 Mbit/s, 1 Gbit/s, 2.5 Gbit/s, 5 Gbit/s, 10 Gbit/s |
| Limiting temperature | -40 to 85 °C |
| Degree of protection acc. to IEC 60529 | IP20 |
| Vibration resistance | 5.72 m/s² acc. to IEC 61373 Category 1 Class B |
| Shock resistance | 5 g / 30 ms, 5 shocks / axis and direction acc. to IEC 61373 Category 1 Class B |
Material properties
| RoHS | compliant |
| ELV status | compliant |
| China RoHS | e |
| REACH Annex XVII substances | Not contained |
| REACH ANNEX XIV substances | Not contained |
| REACH SVHC substances | Not contained |
Specifications and approvals
| Specifications | EN 45545-2 |
| UL / CSA | UL 1863 DUXR2.E470046 |
| CSA-C22.2 No. 182.4, No. 233-09 DUXR8.E470046 | |
| Approvals | DNV GL |
| PROFINET | Yes |
Commercial data
| Packaging size | 1 |
| Net weight | 0.005 g |
| Country of origin | Latvia |
| European customs tariff number | 85366990 |
| GTIN | 5713140135543 |
| eCl@ss | 27440205 Contact insert for industrial connectors |
| ETIM | EC000438 |
| UNSPSC 24.0 | 39121522 |
