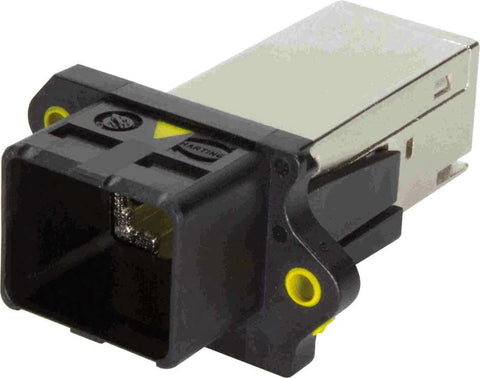

Harting Connector, pushpull V4, Cat.6, 8 contacts

Product Overview

The PushPull V4 PFT 10G Cat6A 8-Pin is a panel feed-through connector for 10 Gigabit Ethernet applications requiring bulkhead mounting with PushPull functionality. Features Cat6A performance with PushPull locking mechanism for high-speed data transmission through panel installations. Part of the HARTING PushPull V4 series, providing robust connectivity where panel mounting, rapid connection, and environmental protection are critical.

Key Features

• Panel feed-through (PFT) design with PushPull locking
• Cat6A performance supporting 10 Gigabit Ethernet
• 8-pin configuration for full Ethernet connectivity
• PushPull mechanism for rapid connection/disconnection
• Successor to previous HPP V4 models
• Full shielding with 360° contact
• Temperature range: -40°C to +70°C
• Industrial-grade construction

Technical Specifications

• Connector Type: Panel feed-through RJ45 with PushPull
• Performance: Cat6A for 10 Gigabit Ethernet
• Contacts: 8-pin
• Temperature Range: -40°C to +70°C
• Series: HARTING PushPull (V4)
• Element Type: Panel feed through
• Locking Type: PushPull mechanism
• Shielding: 360° EMI protection
• Material Rating: UL94 V-0

Applications

• Industrial control panels requiring Ethernet pass-through
• Equipment enclosures with rapid-connect networking
• Manufacturing systems with panel-mounted PushPull requirements
• Process control cabinets requiring protected connections
• Mobile equipment with frequent connector engagement

Compatibility

• Compatible with HARTING PushPull V4 system components
• Suitable for Cat6A network cables
• Standard RJ45 equipment compatibility
• Successor to HPP V4 RJ45 10G Cat6 C-PFT models

Environmental Protection

• Temperature Range: -40°C to +70°C
• Shielding: 360° EMI protection
• Material: UL94 V-0 rated construction
• Industrial Design: Robust panel feed-through design

Certifications and Compliance

• Standards: Cat6A transmission standard
• Performance: 10 Gigabit Ethernet capable
• CSA Certification: CSA-C22.2 No. 182.3
• Material Flammability: UL94 V-0
• RoHS: Compliant
• Country of Origin: Germany
