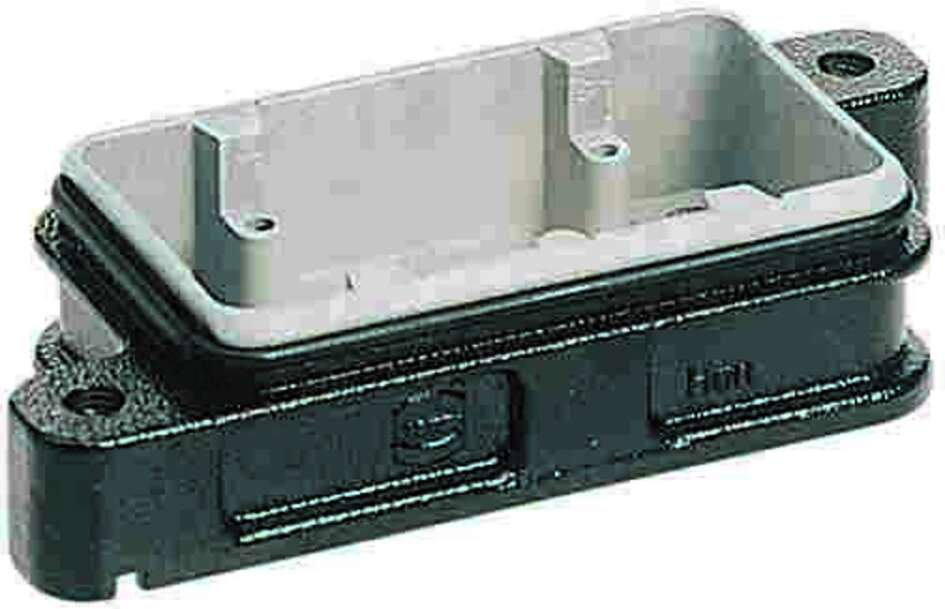

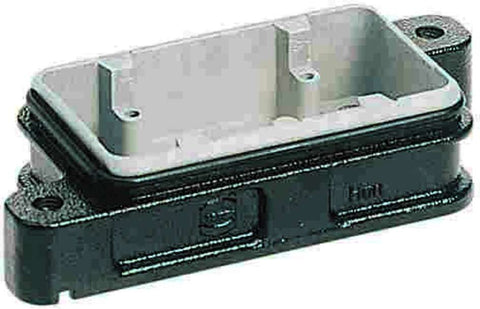

Harting Bulkhead mounted housing, aluminium die-cast, size 6B Part number 09400060311

Product Overview

The Han 6 HPR Base Panel Screw Locking Housing is a robust bulkhead-mounted connector housing designed for harsh outdoor environments requiring reliable electrical connections. Features aluminum die-cast construction with screw locking mechanism for secure panel mounting. Part of the Han® HPR series with size 6B configuration, providing superior protection for demanding industrial applications where environmental sealing is critical.

Key Features

• Bulkhead-mounted housing for panel installation
• Screw locking mechanism for secure connection
• Size 6B configuration for compact applications
• Aluminum die-cast construction for durability
• Multiple IP protection ratings: IP65/IP68/IP69
• Powder-coated surface in RAL 9005 (jet black)
• NBR sealing material for environmental protection
• Designed for harsh outdoor environments

Technical Specifications

• Housing Size: 6B
• Mounting Type: Bulkhead/Panel mounted
• Locking Type: Screw locking
• Tightening Torque: 4 Nm (screw locking)
• Temperature Range: -40°C to +125°C
• IP Protection: IP65/IP68/IP69 (IPX9K per ISO 20653)
• UL Type Rating: 4, 4X, 12 (per UL 50/UL 50E)
• Housing Material: Aluminum die-cast
• Surface Finish: Powder-coated
• Housing Color: RAL 9005 (jet black)
• Seal Material: NBR (Nitrile rubber)
• Series: Han® HPR

Installation Details

• Panel cutout required for bulkhead mounting
• Screw locking mechanism: 4 Nm torque specification
• Compatible with standard panel thicknesses
• Secure environmental sealing when properly installed
• Requires appropriate mating housing for complete assembly

Applications

• Outdoor industrial equipment requiring weatherproof connections
• Marine and offshore applications
• Food processing equipment (IP69 washdown capability)
• Transportation and rail systems
• Heavy machinery in harsh environments
• Control panels exposed to environmental conditions

Compatibility

• Compatible with Han 6 series connector inserts
• Designed for use with corresponding Han 6 HPR mating housings
• Suitable for various Han 6 insert configurations
• Part of comprehensive Han® HPR connector system

Environmental Protection

• IP65: Dust-tight and protected against water jets
• IP68: Dust-tight and protected against submersion
• IP69: High-pressure, high-temperature washdown protection
• Temperature Range: -40°C to +125°C operational
• Corrosion Resistant: Aluminum die-cast with protective coating

Important Configuration

• Proper sealing requires correct installation procedures
• Panel thickness must be within specified range
• Mating cycles should not exceed connector specifications
• Environmental sealing depends on proper assembly
• Follow torque specifications for optimal performance

Certifications and Compliance

• Standards: IEC 61984, IEC 60529
• UL Type Rating: UL 50/UL 50E (Type 4, 4X, 12)
• Environmental: IP65/IP68/IP69 per IEC 60529
• ISO 20653: IPX9K high-pressure washdown
• RoHS: Compliant
• ELV: Compliant
• China RoHS: Compliant
• Country of Origin: Germany

Environmental Compliance

• RoHS compliant with applicable exemptions
• REACH Annex XVII: No restricted substances
• REACH Annex XIV: No authorization required substances
• ELV directive compliant
• China RoHS environmental compliance
