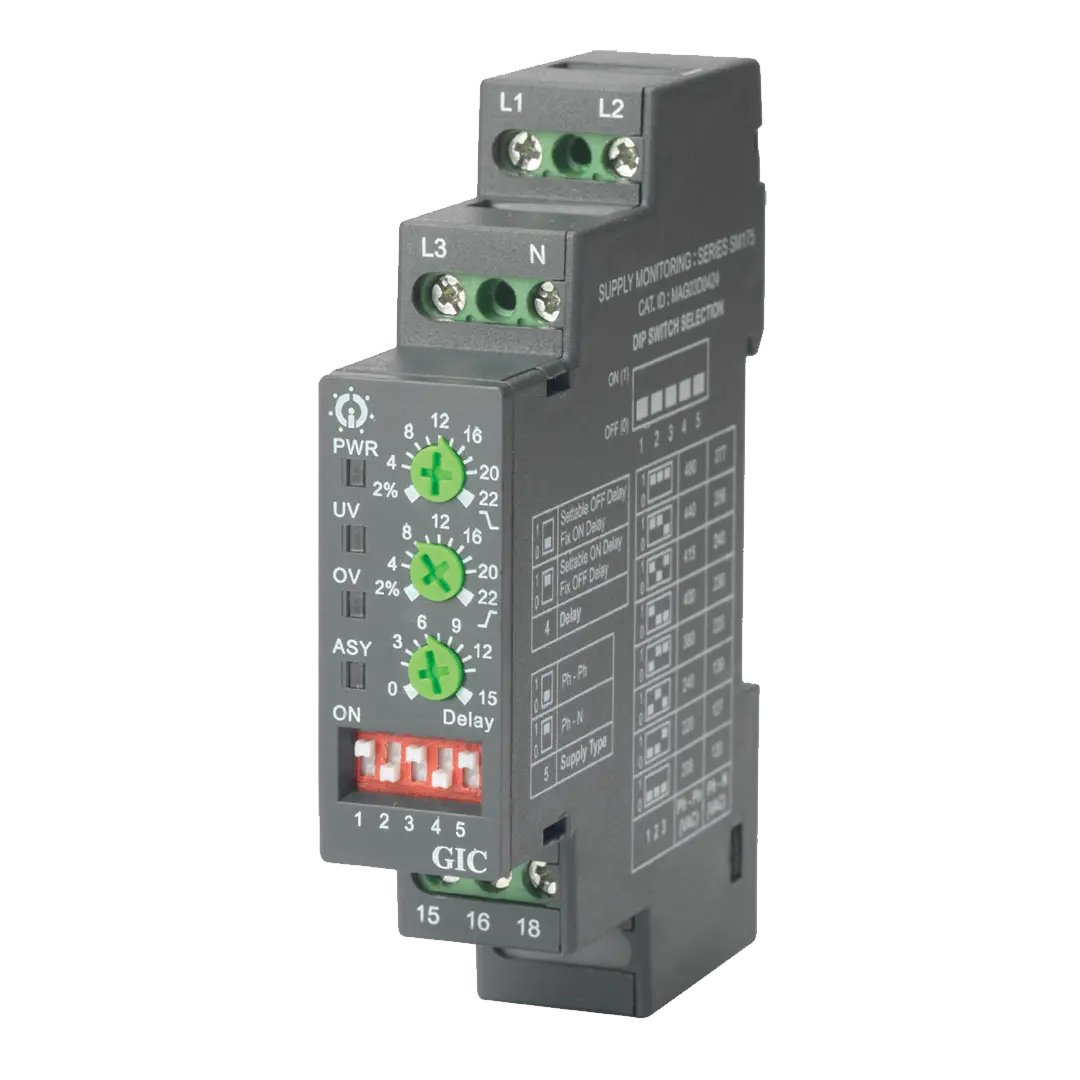

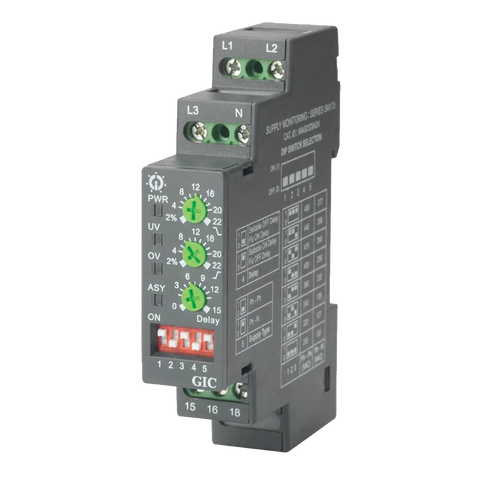

GIC offers a variety of voltage monitoring relays that are built for the sole purpose of protecting your equipment against the damaging effects of abnormal voltage conditions and fluctuations.
\nIP Rating / Detailed | IP20/IP30 |
IP Rating | IP20/IP30 |
Compliance/Certifications | CE / RoHS |
Temperature: Operating | -20°C to 60°C |
Part Depth (mm) | 66.5 mm |
Part Width (mm) | 18 mm |
Part Height (mm) | 90 mm |
Weight (g) | 72g |
Max Frequency | 50/60 Hz |
Rated Operating Voltage | 120/240 V, Rated Current (Ie): 3.0/1.5 A / 24/125/250 V, Rated Current (Ie): 2.0/0.22/0.1 A |
Supply Voltage | 208 - 480 VAC / 120 - 277 VAC |
Mounting Type | Base / DIN rail |
Power Consumption | 16 VA |
