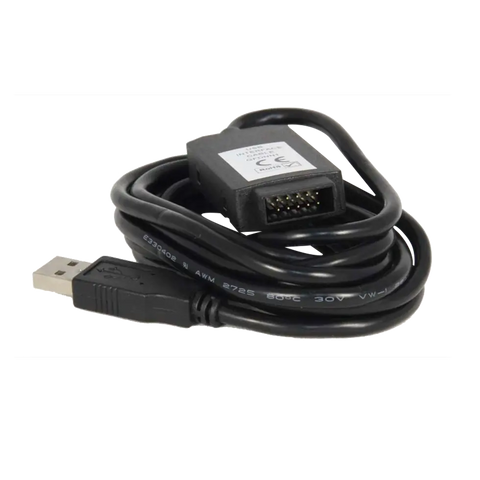

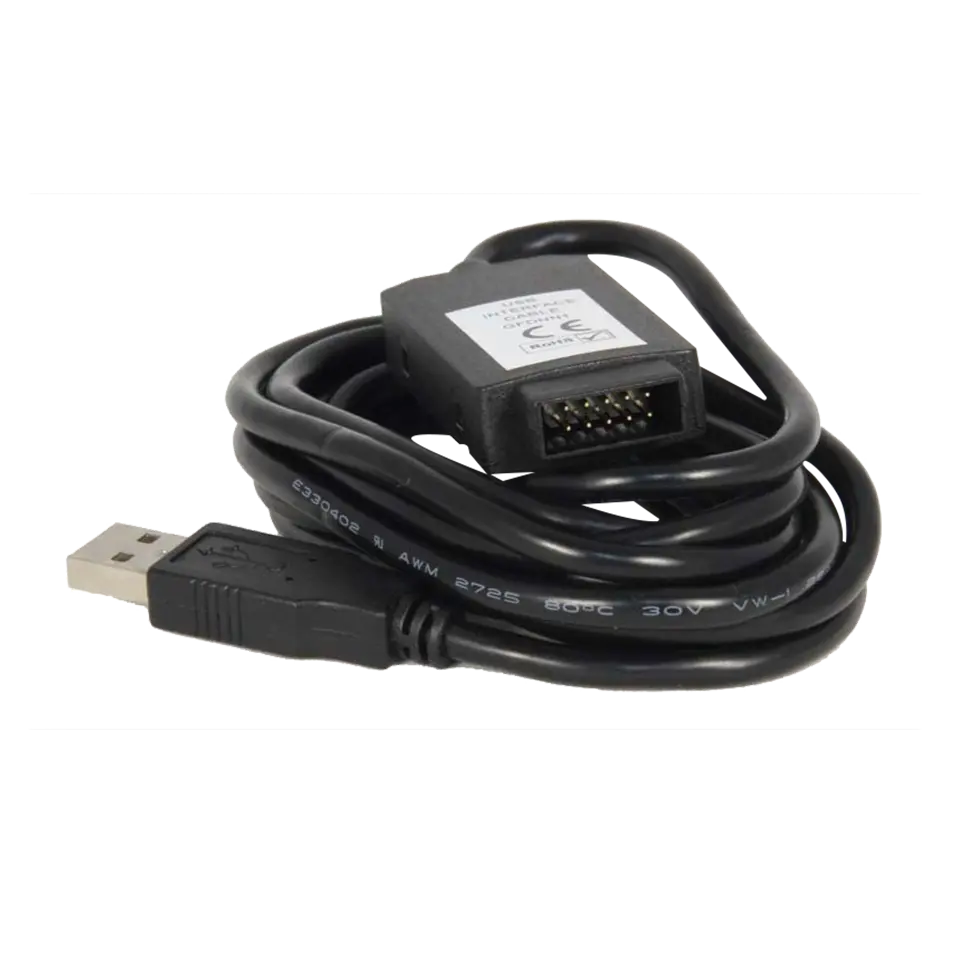

GIC USB Interface cable for programming genie- Nx

\nCompatible with USB 2.0\nInput : USB 2.0 Protocol\nOutput : RS232 on DB9 Male connector compatible to PC RS485/RS422 on terminal block.\nCommunication Speed : 300bps to 230Kbps.\nAuto direction control for RS485-2W data transmission.\nCable: USB 2.0 type A to type B cable.\nGalvanic Isolation of 1.5kV\nRS232/RS485 line protection: +/- 15kV ESD.\nLED Indication for...
Vendor: GIC
SKU: GFDNN1
Availability: In stock
Product type: Control Panel
Please hurry! Only 2 left in stock
Description
Description
x
    \n
  • Compatible with USB 2.0
    • \n
  • Input : USB 2.0 Protocol
    • \n
  • Output : RS232 on DB9 Male connector compatible to PC RS485/RS422 on terminal block.
    • \n
  • Communication Speed : 300bps to 230Kbps.
    • \n
  • Auto direction control for RS485-2W data transmission.
    • \n
  • Cable: USB 2.0 type A to type B cable.
    • \n
  • Galvanic Isolation of 1.5kV
    • \n
  • RS232/RS485 line protection: +/- 15kV ESD.
    • \n
  • LED Indication for Transmit Receive signals.
    • \n
  • Input power from USB port, no external power required.
    • \n
  • 2M enclosure with DIN Rail mounting.
    • \n
  • Virtual COM port USB Drivers provided for Win XP, Vista, Win7, Win8
    • \n
\n
Specifications
Specifications
x
Compliance/CertificationsRoHs
Weight (g)100 g
ColourBlack
Documents
Documents
x
Download Datasheet
