Description
x- \n

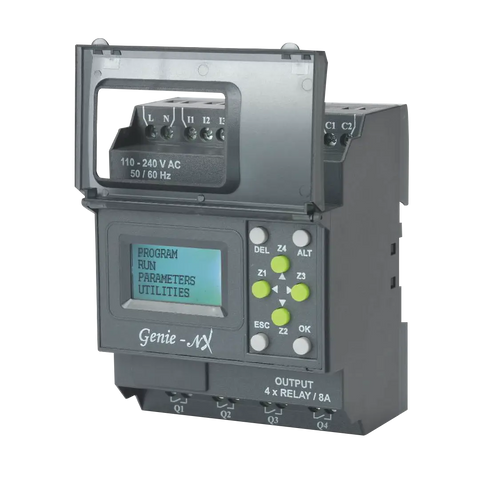

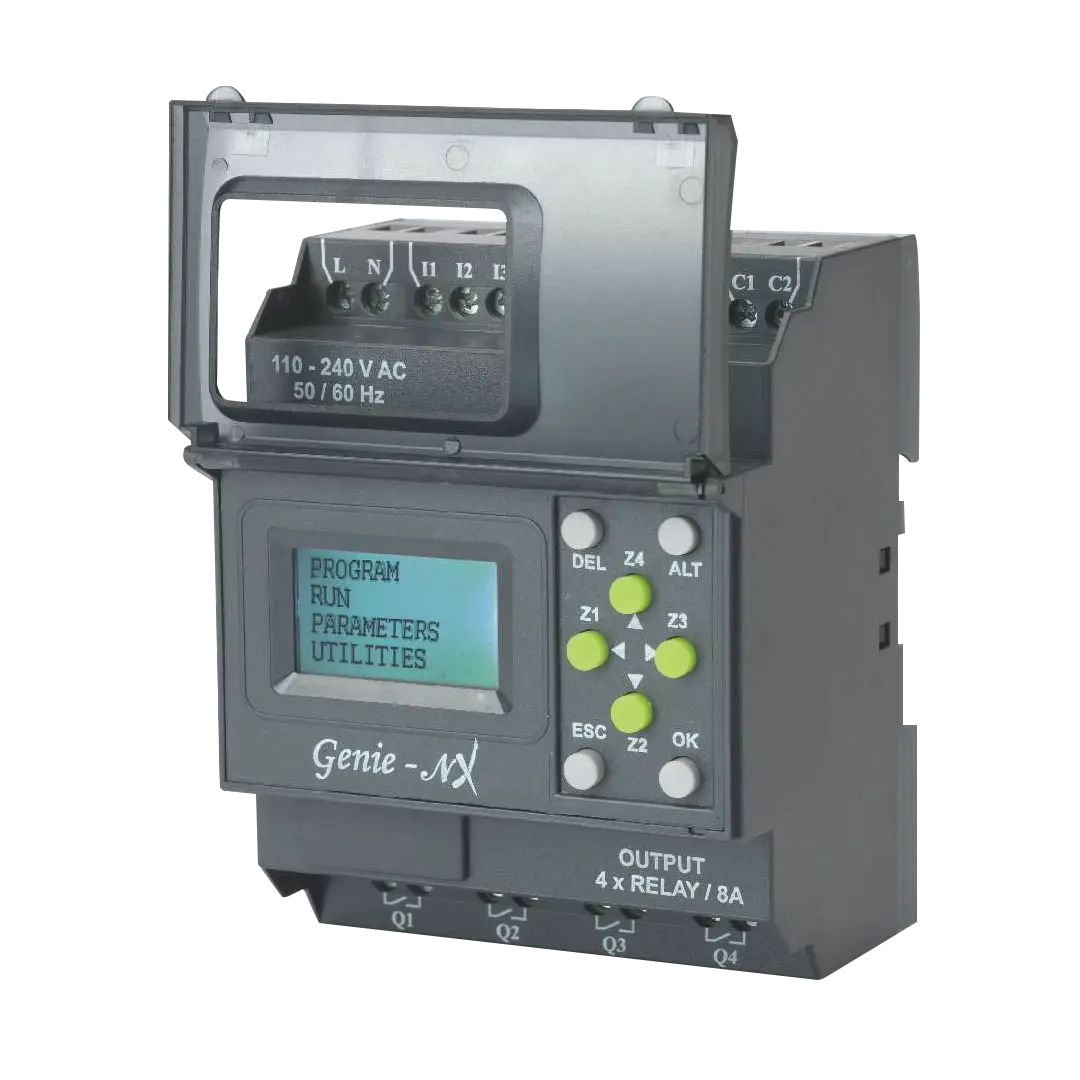

- Supports up to 48 I/Os (32 Digital Inputs & 16 Digital Outputs) \n
- 250 lines of ladder programming \n
- 16 soft text messages, Time Switches, Compare Counters, Timers, Counters & 12 Analogue functions, 4 Hour Meters \n
- DST Feature Available \n
- Backlit LCD Screen for display & modification of pre-selected parameters of functional blocks, viewing I/O status and programming on the device \n
- PC software for programming, online & offline simulation, documentation & printing Designed for use in automation for commercial & Industrial sectors \n
- Multi level password and run time parameter save facility \n
Specifications
x| IP Rating / Detailed | IP20 / IP40 |
| IP Rating | IP20 / IP40 |
| Compliance/Certifications | CE / cULus listed / RoHs |
| Temperature: Operating | -10°C to 55°C |
| Part Depth (mm) | 65 mm |
| Part Width (mm) | 72 mm |
| Part Height (mm) | 90 mm |
| Weight (g) | 230 g |
| Max Frequency | 50/60 Hz |
| Rated Operating Voltage | 120/240 V, Rated Current (Ie): 3.0/1.5 A / 24/125/250 V, Rated Current (Ie): 2.0/0.22/0.1 A |
| Supply Voltage | 110 - 240 VAC |
| Mounting Type | Base / DIN rail |
| Power Consumption | 5 W |
