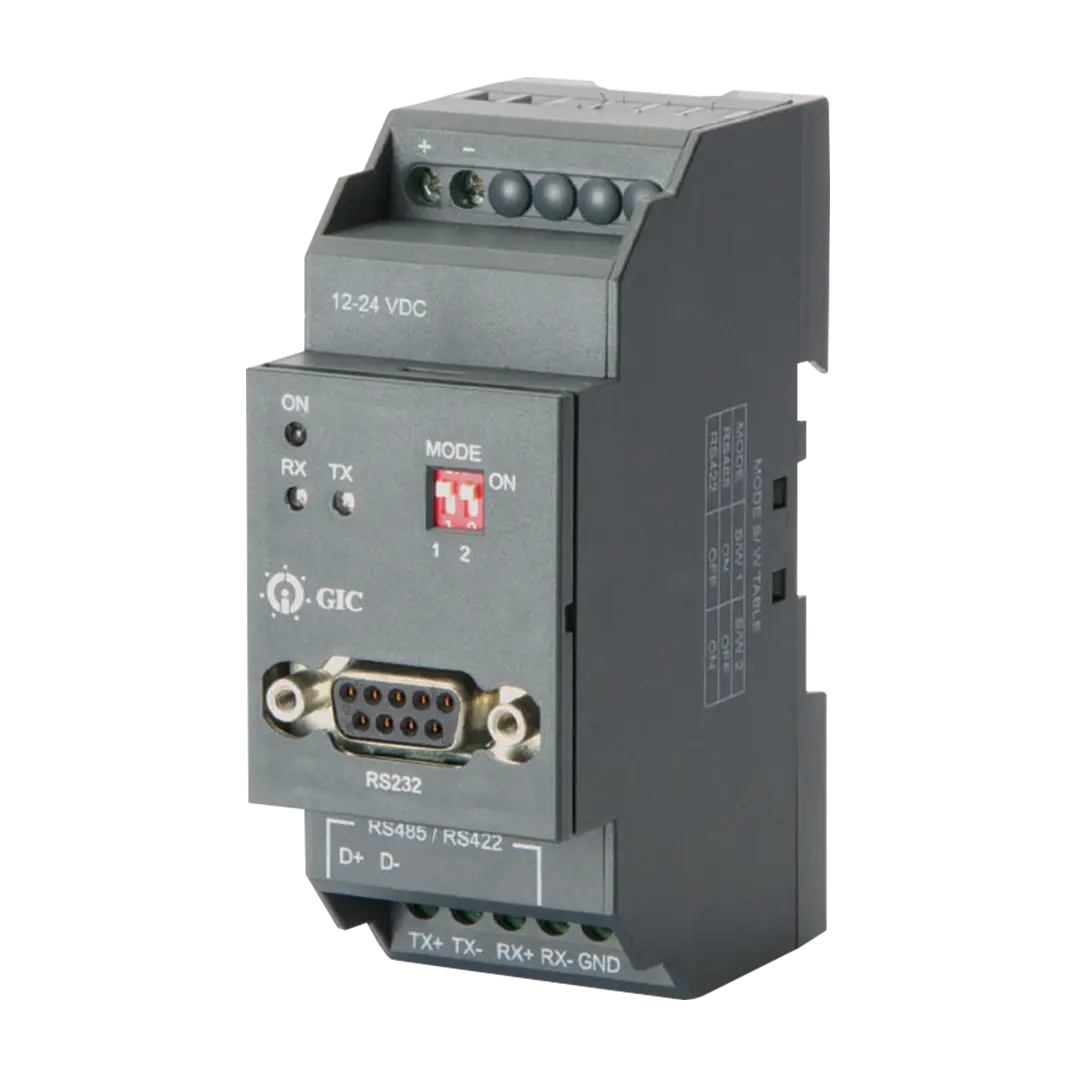

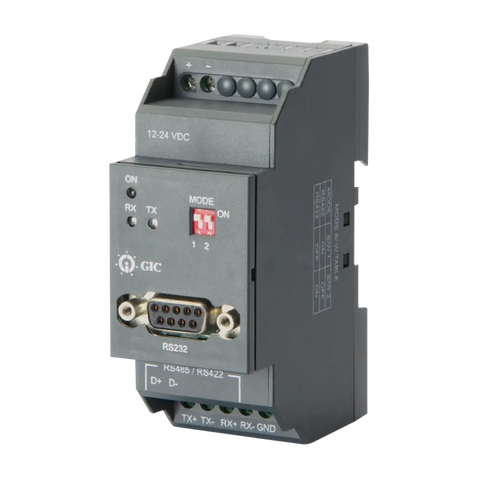

GIC Converter, RS232 to RS485/RS422, Din rail, 12 - 24VDC

Having a high communication speed, the Interface Converters by GIC offer a cost-effective solution to a smooth interworking between different communication interfaces.

\n
• Isolated RS485/RS422 on terminal block.
\n
• RS232 with DB9 Female connector
\n
• Auto direction control for RS485-2W transmission.
\n
• Galvanic Isolation of 1500V for RS485/RS422.
\n
• Supports Baud rate up to 230Kbps.
\n
• Internal 15 kV ESD protection both RS232 and RS485/RS422.
\n
• LED Indication for Transmit, Receive signal communication traffic.
\n
• Input power supply range 9 to 26.4 VDC
\n
• 2M enclosure with DIN Rail mounting.
