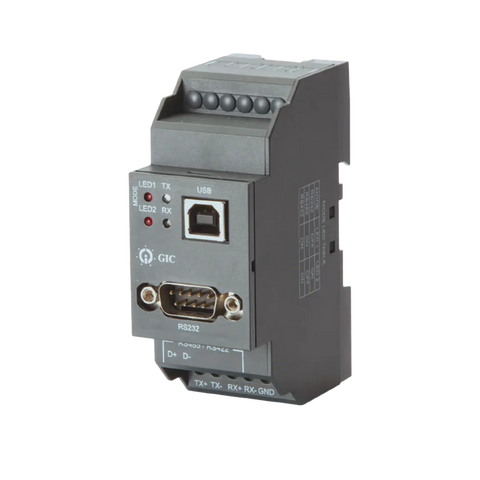

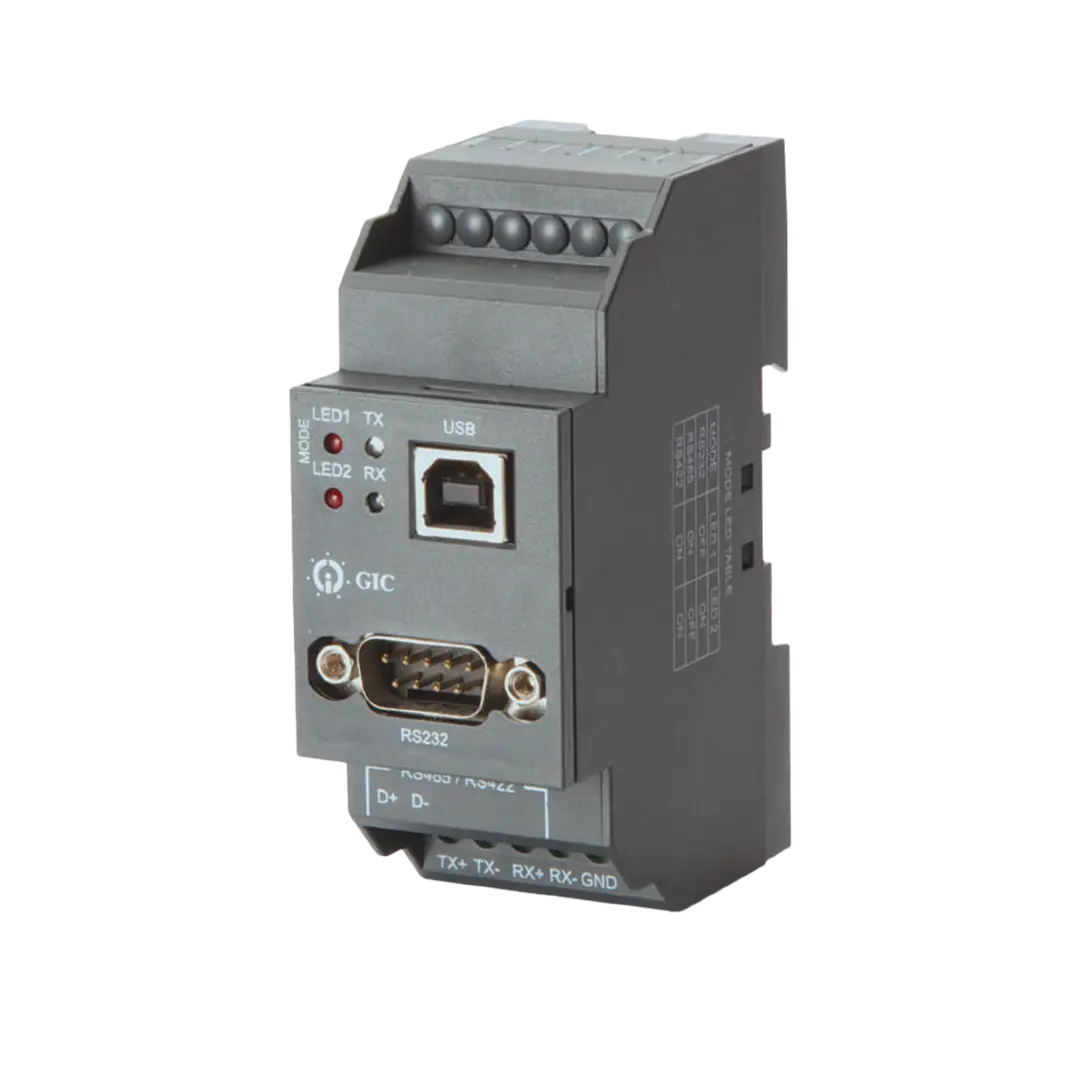

GIC Lynx Converter, USB to RS232/RS485/RS422, male, Din, 36mm

Having a high communication speed, the Interface Converters by GIC offer a cost-effective solution to a smooth interworking between different communication interfaces.

\n
• Compatible with USB 2.0
\n
• Input: USB 2.0 Protocol
\n
• Output: RS232 on DB9 Male connector compatible to PC RS485/RS422 on terminal block.
\n
• Communication Speed: 300bps to 230Kbps.
\n
• Auto direction control for RS485-2W data transmission.
\n
• Cable: USB 2.0 type A to type B cable.
\n
• Galvanic Isolation of 1.5kV
\n
• RS232/RS485 line protection: +/- 15kV ESD.
\n
• LED Indication for Transmit Receive signals.
\n
• Input power from USB port, no external power required.
\n
• 2M enclosure with DIN Rail mounting.
\n
• Virtual COM port USB Drivers provided for Win XP, Vista, Win7, Win8
