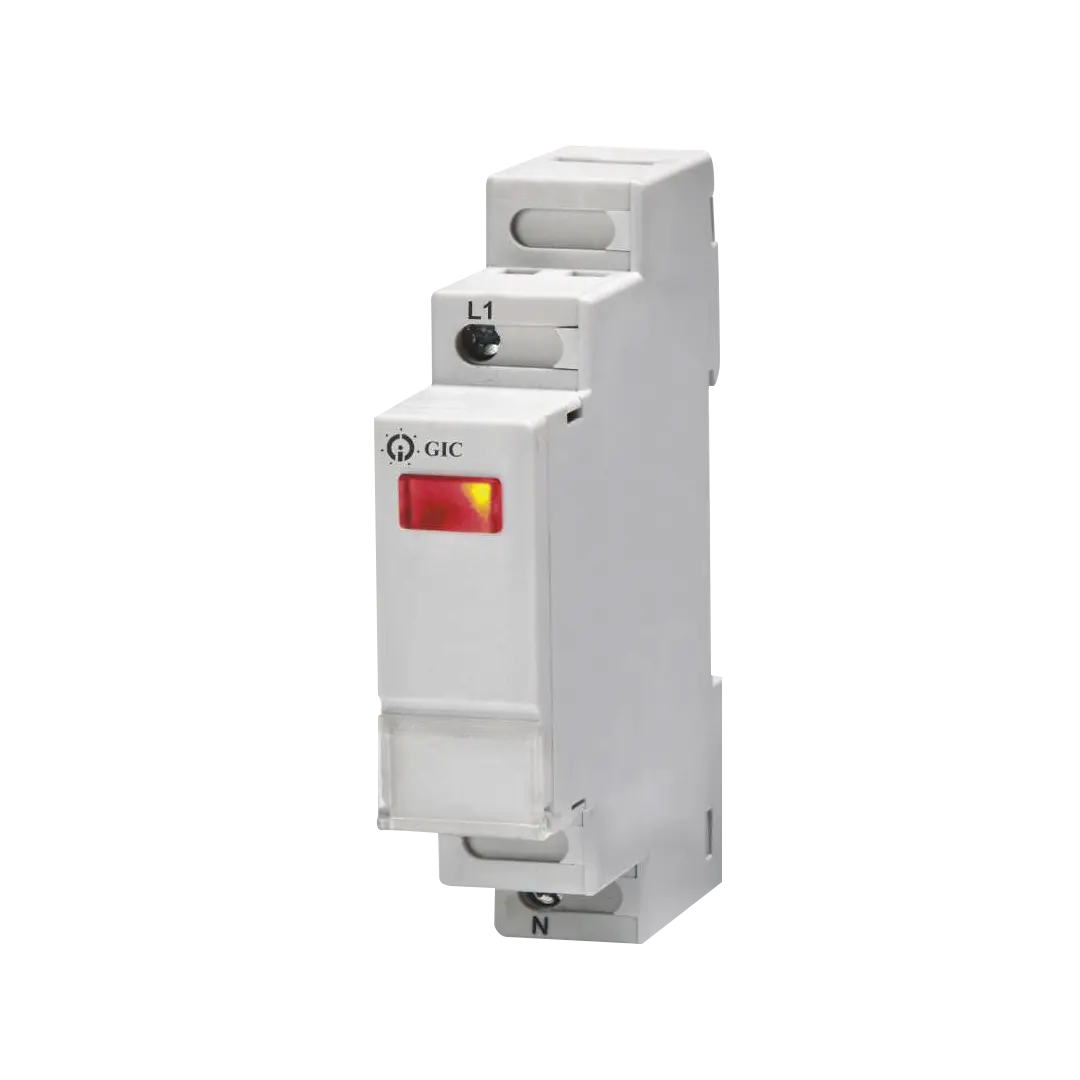

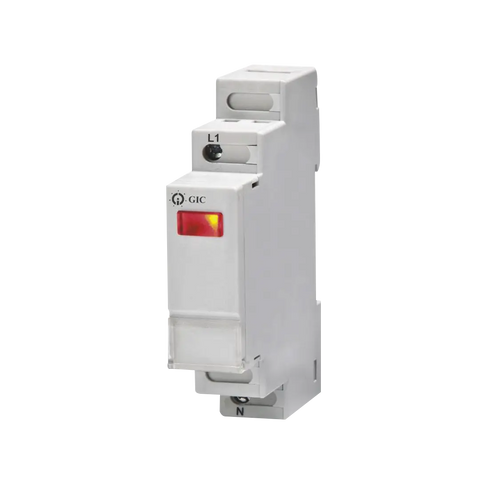

The MM1NDV is a Single Phase Indicator with a Red LED which lights up if the phase is present as it constantly checks the phase sequence. This gives a quick and easy reference to check if any phases are not live.\n\nIf the sequence is changed it can cause a temporary or permanent failure to the motor. Hence, the importance to ensure that the phase in squence is maintained.
IP Rating / Detailed | IP20/IP30/IP40 |
IP Rating | IP20/IP30/IP40 |
Compliance/Certifications | CE / RoHS |
Temperature: Operating | -15°C to 60°C |
Part Depth (mm) | 65 mm |
Part Width (mm) | 17.5 mm |
Part Height (mm) | 90 mm |
Weight (g) | 75 g |
Max Frequency | 50/60 Hz |
Supply Voltage | 240 VAC |
Mounting Type | DIN rail |
Power Consumption | 1.8 W |
