Description
x- \n

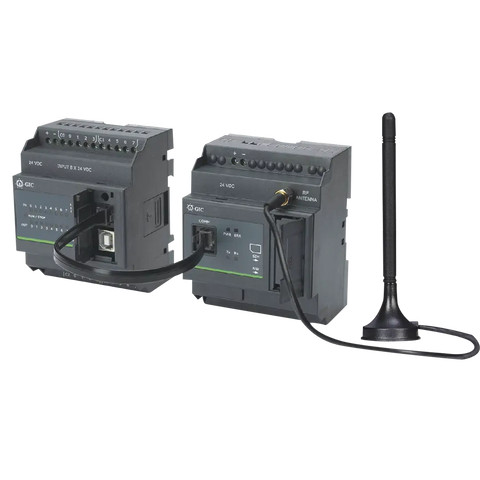

- GSM Alarm Modem is specifically designed to provide GSM features to Mini PLC PL-100 \n
- GSM Alarm Modem enables monitoring of inputs, outputs and controlling of outputs of Mini PLC PL-100 through SMS facility \n
- The preset and current value related to special function blocks (SFB) that are available in the ladder logic can be monitored \n
- Analogue input and output values can also be effectively monitored and controlled \n
- Diagnostic information about all the inputs and outputs of devices connected in the System is available for users \n
- Device and Clock settings can be configured by sending respective queries to the device \n
- User can integrate Special Function Blocks such as Send and Receive SMS along with others like Timers, Time Switches, Counters, etc. for various applications \n
- Alert messages can be received from the GSM Alarm modem depending on the ladder logic \n
- Power Failure condition can also be effectively reported \n
Specifications
x| IP Rating / Detailed | IP20 for Terminals / IP40 for Enlosure |
| IP Rating | IP20 / IP40 |
| Temperature: Operating | -5°C to 55°C |
| Supply Voltage | 24 VDC |
| Mounting Type | Base / DIN rail |
