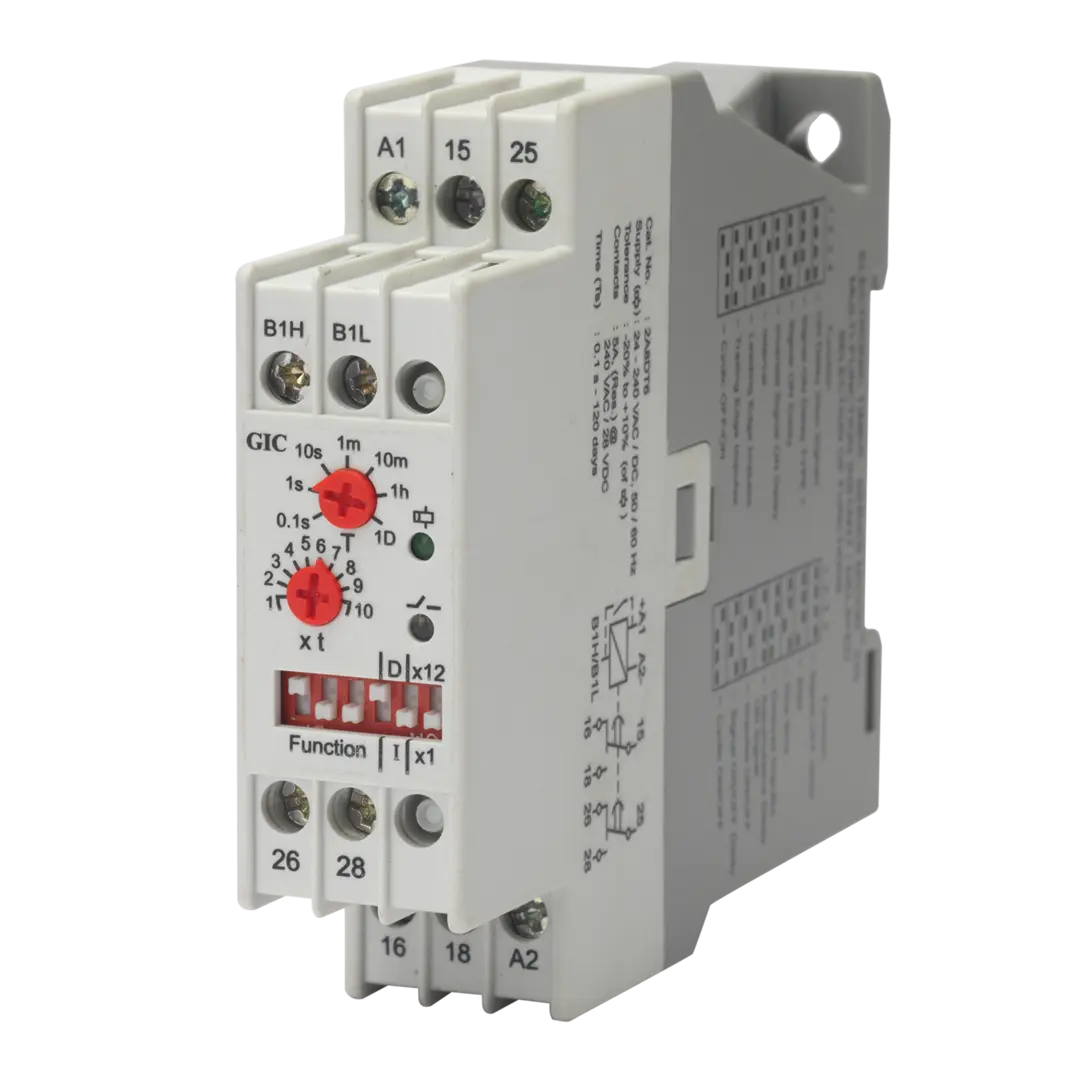

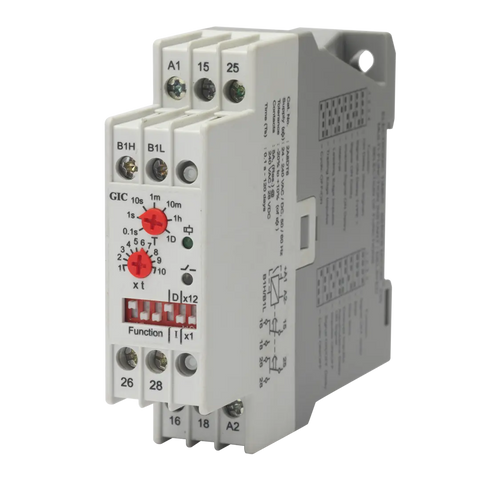

GIC Micon 225 Timer, multi-function, 2c/o, 24 - 240VAC/DC

\nMulti-function with Signal Start and Supply Start.\n16 Timing Functions selected by DIP switch.\nTwo independent relay outputs with either both relays timed or one timed and one instantaneous.\nWide Input Signal & Supply range - 24–240V AC/DC.\nWide Timing Range - 0.1s to 120 days.\nHigh timing accuracy.\nLED indicators for Power Supply & Relay...
Vendor: GIC
SKU: 2A8DT6
Availability: In stock
Product type: Control Panel
Please hurry! Only 110 left in stock
Description
Description
x
    \n
  • Multi-function with Signal Start and Supply Start.
    • \n
  • 16 Timing Functions selected by DIP switch.
    • \n
  • Two independent relay outputs with either both relays timed or one timed and one instantaneous.
    • \n
  • Wide Input Signal & Supply range - 24–240V AC/DC.
    • \n
  • Wide Timing Range - 0.1s to 120 days.
    • \n
  • High timing accuracy.
    • \n
  • LED indicators for Power Supply & Relay Status.
    • \n
  • 22.5mm DIN Mount Housing.
    • \n
Specifications
Specifications
x
IP Rating / DetailedIP20 for Terminals / IP40 for Enlosure
IP RatingIP20 / IP40
Temperature: Operating-10°C to 60°C
Part Depth (mm)100.5mm
Part Width (mm)22.5mm
Part Height (mm)75mm
Weight (g)130g
Max Frequency50/60 Hz
Power Consumption3 VA
Documents
Documents
x
Download Datasheet
