Flexkabel Control Cable 2X1,5mm² Screened PVC Grey 300/500V
Share
Link copied to clipboard!
Shielded wiring cable for measuring and controlling suitable for tool machinery conveyor belts and production lines for installations of air conditioning and in steel production plants and rolling mills. Fexible use with medium mechanical stresses without tensile stress or forced movements in dry moist and wet rooms as well as...

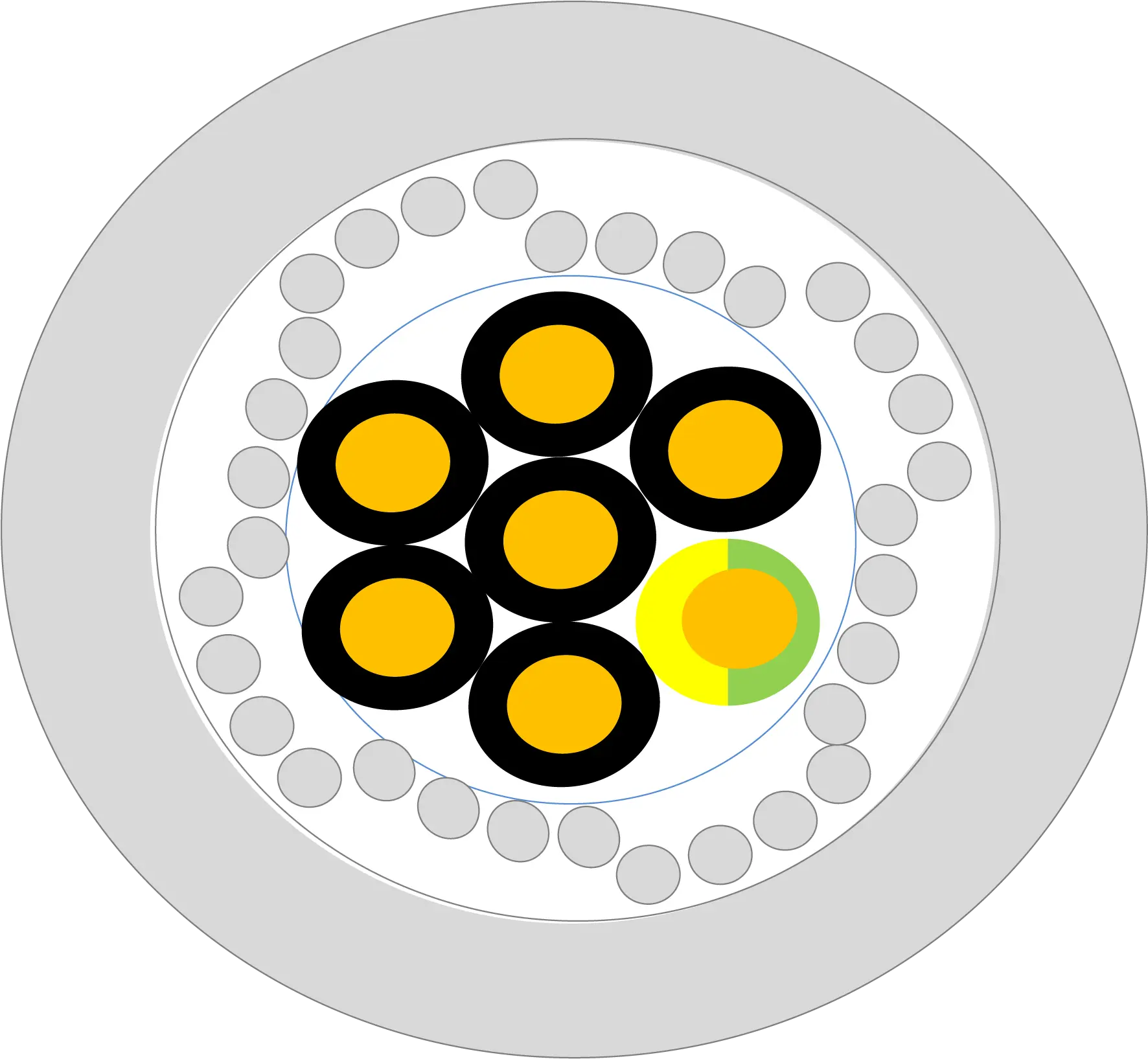

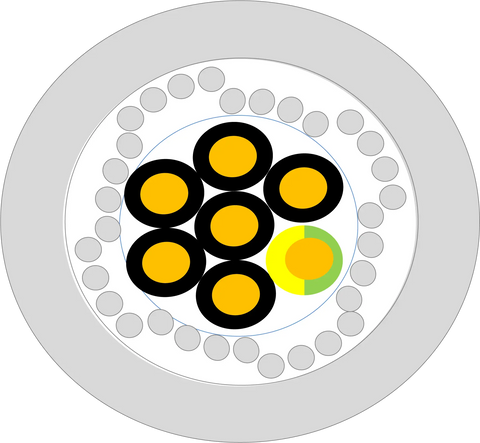

Shielded wiring cable for measuring and controlling suitable for tool machinery conveyor belts and production lines for installations of air conditioning and in steel production plants and rolling mills. Fexible use with medium mechanical stresses without tensile stress or forced movements in dry moist and wet rooms as well as outdoor (fixed installation). Is not suitable to be used directly underground or as underwater cable. Cores have been numbered in such a way that the numbers are easily readable even if the cable has been unsheathed a few cm. Core numbers have been underlined to avoid confusion. Earth wire is located in the outer layer. The black outer sheath is made with special PVC resistant to the ultra violet radiations.Construction:\nInner Conductor Bare Copper Stranded\nInsulation Polyvinylchloride (PVC) TI2 (YI2)\nIdentification JZ 1 Core G/Y + Black cores with numbers\nIdentification OZ All black cores with numbers\nCabling Conductors cabled in concentric layers\nJacket Polyvinylchloride (PVC) TM2 (YM2)\nColor Grey RAL 7001\nTechnical Data:\nPeak Operating Voltage (Not for power purposes) Volt 250\nOperating Voltage Uo/U Volt 300/500\nTest Voltage Volt (Ac) 2.000\nInsulation Resistance MOhm x km > 20\nTemperature Range Fixed Installation - 15 °C / + 70 °C\nMobile Installation - 5 °C / + 70 °C\nMin. Bending Radius Fixed Installation 10 x Diameter\nMobile Installation 20 x Diameter \n
