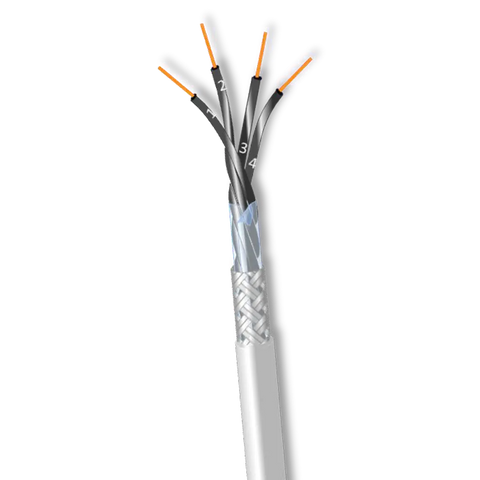

Flexkabel Control Cable 18G0,75mm² Screened PVC Grey 300/500V

Shielded wiring cable for measuring and controlling suitable for tool machinery conveyor belts and production lines for installations of air conditioning and in steel production plants and rolling mills. Fexible use with medium mechanical stresses without tensile stress or forced movements in dry moist and wet rooms as well as outdoor (fixed installation). Is not suitable to be used directly underground or as underwater cable. Cores have been numbered in such a way that the numbers are easily readable even if the cable has been unsheathed a few cm. Core numbers have been underlined to avoid confusion. Earth wire is located in the outer layer. The black outer sheath is made with special PVC resistant to the ultra violet radiations.

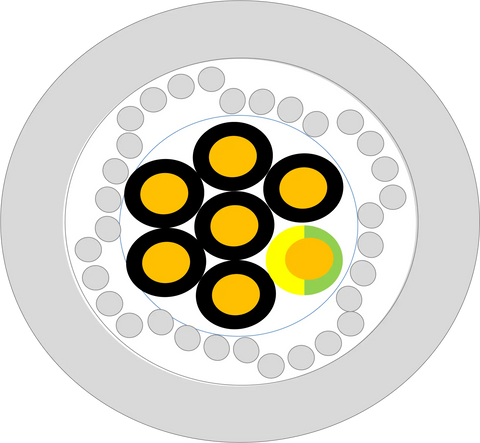

Construction:

\n
• Inner Conductor Bare Copper Stranded
\n
• Insulation Polyvinylchloride (PVC) TI2 (YI2)
\n
• Identification JZ 1 Core G/Y + Black cores with numbers
\n
• Identification OZ All black cores with numbers
\n
• Cabling Conductors cabled in concentric layers
\n
• Jacket Polyvinylchloride (PVC) TM2 (YM2)
\n
• Color Grey RAL 7001
\n

Technical Data:

\n
• Peak Operating Voltage (Not for power purposes) Volt 250
\n
• Operating Voltage Uo/U Volt 300/500
\n
• Test Voltage Volt (Ac) 2.000
\n
• Insulation Resistance MOhm x km > 20
\n
• Temperature Range Fixed Installation - 15 °C / + 70 °C
\n
• Mobile Installation - 5 °C / + 70 °C
\n
• Min. Bending Radius Fixed Installation 10 x Diameter
\n
• Mobile Installation 20 x Diameter
