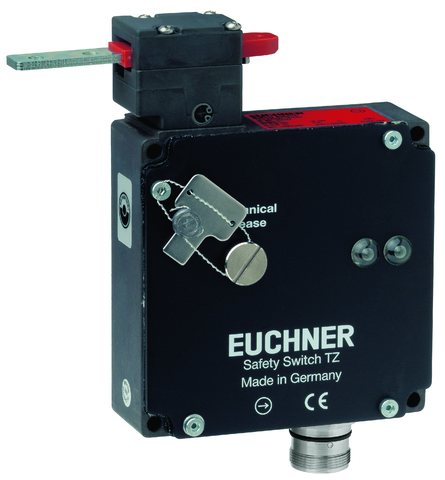

Product Information for TZ2LE024RC18VAB-C1826 (Order no. 085180)

Safety Switch TZ, Plug Connector RC18

Auxiliary release on the front
Two LED displays, red and green
Plug connector M23 (RC18)
Actuating head fitted left

TZ2LE024RC18VAB-C1826 (Order no. 085180)

Product Details

Description

Approach direction: Horizontal, can be adjusted in 90° steps.

Solenoid Operating Voltage and LED Function Display

24 V AC/DC -15%, +10%

Guard Locking Type

Type	Description
TZ2	Open-circuit current principle, guard locking by applying voltage to the solenoid. Release by spring force.

Switching Elements

Element	Description
SK	For monitoring the door/actuator position
ÜK	For monitoring the guard locking (built-in solenoid)
2131H	Slow-action switching contact 3 NC + 1 NO
3131H	Slow-action switching contact 2 NC + 2 NO

Auxiliary Release

This is used for releasing the guard locking with the aid of a tool. Sealing can be fitted to protect against tampering. Lead seal kit and tool included (already pre-assembled on versions with plug connectors).

Technical Data

Approvals

Electrical Connection Values

Power Consumption	10 W
Rated Insulation Voltage Ui	50 V
Rated Impulse Withstand Voltage Uimp	1.5 kV
Utilization Category	DC-13: 4 A 24 V (>70 °C => 2 A)
AC-15	4 A 50 V (>70 °C => 2 A)
Short Circuit Protection	4A gG (> 70 °C => 2A gG)
Solenoid Operating Voltage	AC/DC 24 V -15% ... +10%
Solenoid Duty Cycle	100 %
