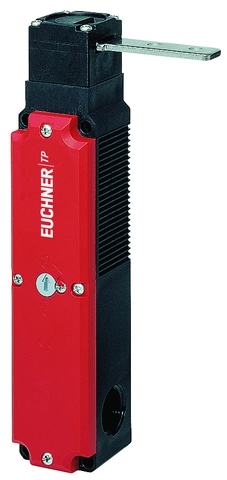

Euchner TP3-4141K024M Safety switch, door monitoring contact

The Euchner TP3-4141K024M is a guard locking safety switch with slow-action switching contacts, used for door monitoring and interlocking on machine guards. It provides two door position and two guard lock monitoring positively driven contacts, with locking based on the closed-circuit current principle and a solenoid operating voltage of AC/DC...

Vendor: Euchner

Rubicon Industrial Technology is the exclusive South African distributor for Euchner.

Availability: Out Of Stock

Product type: Safety Automation

Please hurry! Only 0 left in stock

Description
Specifications
Documents
Alternatives

TP3-4141K024M (Order no. 100684)

TP safety switch, M20 x 1.5 cable entry, contacts for door position, increased overtravel vertical

3 x cable entry M20 x 1.5
Contacts for the door position
Auxiliary release
Additional increased overtravel for vertical approach direction
Closed-circuit current principle

Description

Approach direction

Horizontal and vertical

Can be adjusted in 90° steps

Increased overtravel for horizontal and vertical approach directions

If increased play is required when the door is closed, an actuator with overtravel is available. This actuator allows the door to move slightly in the actuating direction when closed. This is important, for example, if safety doors have a rubber buffer as an end stop. An actuator with overtravel can reduce the permanent pressure of the compressed rubber buffer. This reduces the load on both the switch head and the door mechanism.

Guard locking principle

Closed-circuit current (power to unlock): In a safety guard with guard locking according to the closed-circuit current principle, the guard is locked by spring force until the guard locking solenoid is supplied with current. The guard is unlocked by means of magnetic force. This is also referred to as mechanical guard locking.

Switching element

4141	Slow-action switching contact
	Contacts for guard locking: 2 positively driven, positively driven contacts
	Contacts for door monitoring: 2 positively driven, positively driven contacts

Auxiliary release

The auxiliary release on the front allows access to the machine in the event of a malfunction, e.g. a power failure. It is unlocked using a tool or a key. The auxiliary release must be secured against misuse (sealing, laking).

Required accessories

Actuator is not included in the scope of delivery.

Technical data

Approvals

Images of approvals

Electrical connection values

Power consumption	8 W
Connection cross section	0.34 - 1.5 mm²
Rated insulation voltage Ui	250 V
Rated impulse withstand voltage Uimp	2.5 kV
Utilization category
AC-15	4 A 230 V
DC-13	4 A 24 V
Short circuit protection according to IEC 60269-1	4A gG
Solenoid operating voltage	AC/DC 24 V -15% ... +10%
Solenoid duty cycle	100 %
Switching voltage	min. at 10 mA 12 V
Switching current	min. at 24 V 1 mA
thermal rated current Ith	4 A

Mechanical values and environment

Approach speed	max. 20 m/min
Connection type	3 x M20 x 1.5
Number of door position positively driven contacts	2
Number of guard lock monitoring positively driven contacts	2
Extraction force	20 N
Actuation frequency	max. 1200 1/h
Actuating force	10 N
Installation orientation	any
Mechanical life	1 x 10⁶
Retention force	10 N
Switching principle	Slow-action switching contact
Degree of protection	IP67
Ambient temperature	-20 to 55 °C
Material	Contact: Silver alloy, gold flashed; Housing: Reinforced thermoplastic
Locking force Fmax	1300 N
Locking force FZh	1000 N
Guard locking principle	Closed-circuit current principle
