Description

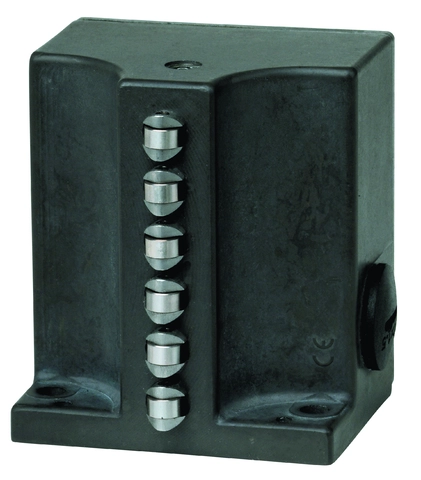

xThis SN05R12-502-M mechanical limit switch is ideal for high-precision industrial applications. It features a snap-action switching contact with 1 NC and 1 NO configuration and an upright housing with a small flange. The plunger spacing is 12 mm, and it offers IP67 protection, making it suitable for demanding environments.
Specifications
x| IP Rating | IP67 |
| Material: Housing Material | Anodised die-cast aluminium / Gold flashed silver alloy |
| Weight (g) | 513g |
| Connection Type | M20 x 1.5 (x2) |
| Utilization Category | AC-12 8 A 250 V / AC-15 6 A 230 V / DC-13 6 A 24 V |
| Switching Current | min. at DC 12V min. 10 mA |
| Actuating Element | Slide bearing / Roller plunger (Operating point accuracy ± 0.01. The reproducible operating point accuracy refers to the axial travel of the plunger after the switching element ES 502 E has been run-in with approx. 2,000 operating cycles.) |
| Actuating Force | min. 20 N |
