Description

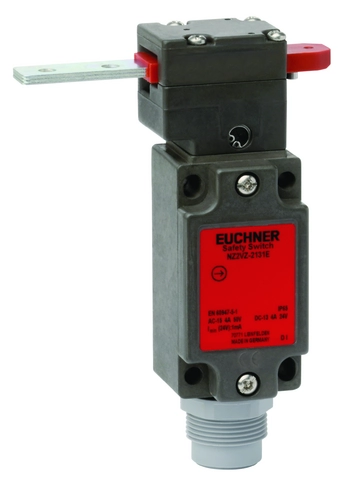

xThe NZ2VZ-538E is a slow-action safety switch with a separate actuator, featuring two positively driven contacts and connection via an SR6 plug connector (6-pin plus PE). It is rated at 4 A for AC15 and DC13 duty (derated to 2 A above 70°C), with a degree of protection of IP65 and an ambient temperature range of -25 to +80°C. The housing is anodised die-cast alloy with silver alloy, gold-flashed contacts, suitable for use on guarded machine access points where door position monitoring is required. Actuation is direction-dependent and can be changed, with an approach speed of up to 20 m/min and an actuation frequency of up to 1200 operations per hour.
Key specifications
- Connection: 1 x Plug connector SR6 (6-pin + PE)
- Operating temperature: -25 ... +80 °C
Specifications
x
| 538H | Slow-action switching contact 2 positively driven, positively driven contact |
Functional drawings
Dimensional drawings
| 1 | Do not use as an end stop. Limit overtravel separately. |
| 2 | Actuating direction can be changed |
| 3 | Standard |
| a | Travel without operation: actuator is in the guide slot, but function is not triggered. |
| b | Switching operation completed: actuator must be inserted to this point to ensure safe switching. The actuator must be withdrawn at least to point a for switching off. |
Connection examples
Technical data
Approvals
Electrical connection values
| Rated insulation voltage Ui | 250 V |
| Rated impulse withstand voltage Uimp | 2.5 kV |
| Utilization category | |
| AC-15 | 4 A 230 V (>70 °C =>2 A) |
| DC-13 | 4 A 24 V (>70 °C =>2 A) |
| Short circuit protection according to IEC 60269-1 | 4A gG (> 70 °C => 2A gG) |
| Switching voltage | |
| min. at 10 mA | 12 V |
| Switching current | |
| min. at 24 V | 1 mA |
| thermal rated current Ith | 4 A (>70 °C =>2 A) |
Mechanical values and environment
| Approach speed | max. 20 m/min |
| Approach direction | A |
| Connection type | 1 x Plug connector SR6 (6-pin + PE) |
| Number of door position positively driven contacts | 2 |
| Extraction force | 35 N |
| Actuation frequency | max. 1200 1/h |
| Actuating force | 35 N |
| Installation orientation | any |
| Insertion depth | 52 mm |
| Mechanical life | 2 x 10⁶ |
| Retention force | 8 N |
| Switching principle | Slow-action switching contact |
| Degree of protection | IP65 |
| Ambient temperature | -25 ... +80 °C |
| Material | |
| Contact | Silver alloy, gold flashed |
| Housing | Anodized die-cast alloy |
Downloads
Documents
Operating Instructions Safety Switch NZ.VZ
Shipping Details
| Item designation | NZ2VZ-538E |
| Gross weight | 0,372kg |
| Global Trade Item Number (GTIN) | 4047048002272 |
| Customs tariff number | 85365019000 |
| ECLASS | 27-27-26-02 Safety switch with separate actuator (Type 2) |
