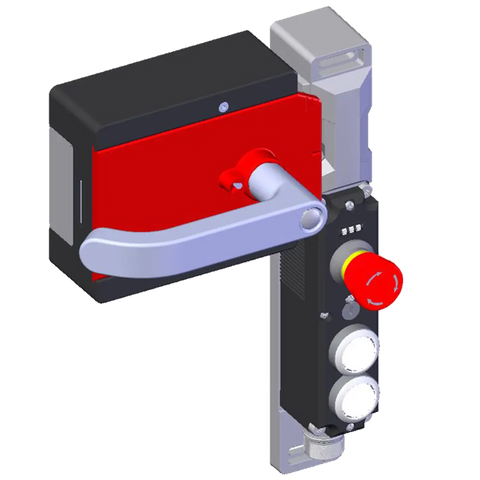

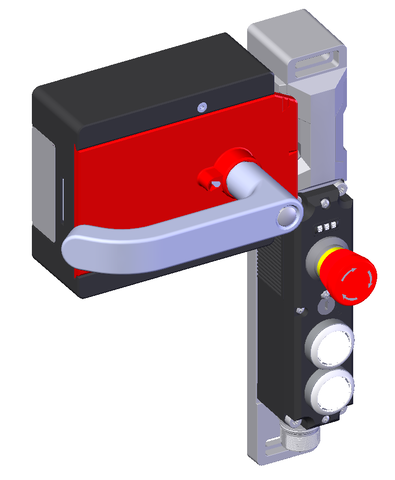

Euchner MGBS-P-L1H-AR-U-L-SH Locking module + handle

MGBS set AR, M23, emergency stop, two pushbuttons, door hinge on left\nLocking module with handle module suitable for doors hinged on the left\nSeries connection possible (up to 20 AR devices in series)\n\nShort circuit monitoring\n2 safety outputs (semiconductor outputs) \nUp to category 4/PL e according to EN ISO 13849-1\nEmergency stop\n2 pushbuttons...

Vendor: Euchner

SKU: 161564

Availability: In stock

Product type: Safety Automation

Please hurry! Only 2 left in stock

Ask an expert

Description
Specifications
Documents

MGBS-P-L1H-AR-U-L-SH-161564 (Order no. 161564)

MGBS set AR, M23, emergency stop, 2 pushbuttons, door hinge on left

Locking module with handle module
Suitable for doors hinged on the left
Series connection possible (up to 20 AR devices in series)
Short circuit monitoring
2 safety outputs (semiconductor outputs)
Up to category 4 / PL e according to EN ISO 13849-1
Emergency stop
2 pushbuttons (illuminated)
With plug connector M23
Unicode
Door position monitoring output

Description

Unicode evaluation

Each handle module is highly coded (unicode). The locking module detects only handle modules that have been taught-in. Additional handle modules can be taught-in. Only the last handle module taught-in is detected.

Guard locking type

MGBS-L1

Guard locking actuated by spring force and power-ON released (closed-circuit current principle).

Lens set

The color of the pushbuttons can be selected using the color cover set included (5 colors).

Connector assignment

Pin	Designation	Function	Connecting cable conductor coloring
1	IMP	Solenoid operating voltage, 24 V DC	VT
2	FI1A	Enable input, channel A	RD
3	FI1B	Enable input, channel B	GY
4	FO1A	Safety output, channel A	RD/BU
5	FO1B	Safety output, channel B	GN
6	UB	Electronics operating voltage, 24 V DC	BU
7	RST	Reset input	GY/PK
8	OD	Door position monitoring output	GN/WH
9	OI	Diagnostic monitoring output	YE/WH
10	S1.A1	EMERGENCY STOP (channel A)	GY/WH
11	S1.A2	EMERGENCY STOP (channel A)	BK
12	FE	Functional earth (must be connected to meet the EMC requirements)	GN/YE
13	S1.B1	EMERGENCY STOP (channel B)	PK
14	S1.B2	EMERGENCY STOP (channel B)	BN/GY
15	S2	Pushbutton 2 (illuminated)	BN/YE
16	H2	LED 2	BN/GN
17	S3	Pushbutton 3 (illuminated)	WH
18	H3	LED 3	YE
19	0 V	Electronics and solenoid operating voltage, 0 V DC	BN

Dimension drawing MGBS set without escape release

Wiring diagram

Technical data

Mechanical values and environment

Installation orientation	Door hinge DIN left
Degree of protection	IP65
Ambient temperature	-20 to 55 °C
Material	Housing: Fiber glass reinforced plastic, nickel-plated die-cast zinc, stainless steel

Downloads

Documents

Data sheets

EU-Konformitätserklärung

Operating Instructions MGBS-P-L.-AR… Unicode/Multicode

Safety information

Shipping Details

Item designation	MGBS-P-L1H-AR-U-L-SH-161564
Gross weight	3.8kg
Customs tariff number	85371098
ECLASS	27-27-24-05 Safety-related transponder switch with guardlocking
