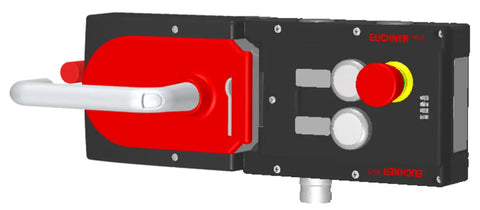

Euchner MGB-L2HE-ARA-L Locking set, label carrier Part number 121195

Euchner’s guard locking set MGB-L2HE-ARA... The locking arm is held in the locked position by solenoid force and is unlocked by spring force when the solenoid is switched off (open-circuit current principle, electrically locked). A mechanical door stop is permanently integrated into the evaluation module of the MGB. A marking on the stop makes adjustment easier. The LED indicator indicates all important system and status information.\nThe colour of the pushbutton can be selected using the lens set included (5 colours). Devices with adhesive labels have pre-formed recesses. The adhesive labels enclosed (standard size 12.5 x 27 mm) can be affixed in these recesses. The escape release enables people accidentally shut in to open the guard locked door from the danger zone.\nMonitoring outputs\n\n\nOT Bolt tongue inserted into the evaluation module\n\nOL Guard locking solenoid in locked position\n\nOI Diagnostics; there is a fault\n\n \nEmergency stop device\n\n\nS1 2 positively driven contacts, emergency stop with turn-to-reset, not illuminated\n\n \nPushbutton\n\n\nS2 1 NO contact, illuminated\n\nS3 1 NO contact, illuminated\n\n
