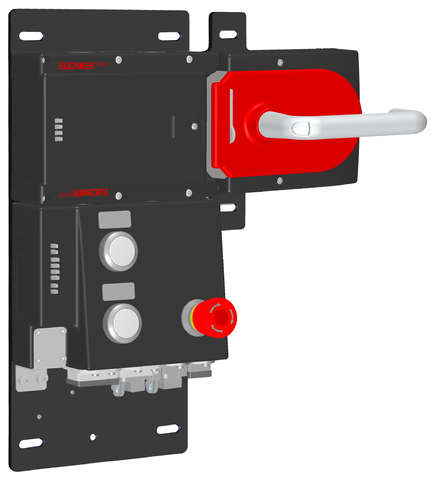

MGB-L2HB-PNA-R-121849 (Order no. 121849)

Locking set MGB-L2...-PN... (guard locking by solenoid force) with 3 control elements, push-pull plug

Guard locking with guard lock monitoring
Emergency stop according to ISO 13850, illuminated
2 illuminated pushbuttons
Including adhesive labels
Push-pull plug
Pre-assembled on mounting plates
Integrated Profinet RT switch
Unicode

MGB-L2HB-PNA-R-121849 (Order no. 121849)

Description

Profinet connection

Connection via push-pull plugs according to IEC 61076-3-117

Profinet RT switch: Point-to-point topology network structure due to integrated RT switch.

Flexible use as interlocking or guard locking: By means of the corresponding evaluation of the safe device data by the control system, use can be as either interlocking or guard locking (with or without monitoring).

Illuminated emergency stop: Emergency stop with illumination that can be controlled as required.

Dimensional drawings

Technical data

Approvals

TUEV Süd München_M6A 040393 0042 Rev. 00

Handle modules MGB-H-AA1A2-R-106049 (Order no. 106049)

Mechanical values and environment

Installation orientation	Door hinge DIN right
Degree of protection	IP65
Ambient temperature	-20 ... +55 °C
Material	Housing: Fiber glass reinforced plastic, nickel-plated die-cast zinc, stainless steel

Locking modules MGB-L2B-PNA-R-121848 (Order no. 121848)

Workspace

Secured switch-off distance sar
Door position	max. 65 mm

Operating and display elements

Occupancy diagram	B1
	L0

Electrical connection values

Connecting cable
Ethernet	Profinet I/O cable, at least cat. 5e
Rated insulation voltage Ui	75 V
Rated impulse withstand voltage Uimp	0.5 kV
EMC protection requirements	In accordance with EN 61000-4 and EN 61326-3-1
maximum feed-in current in the connection block	X1, X2: max. 4000 mA
Safety class	III
Current consumption	max. 500 mA
Transponder coding	Unicode
Degree of contamination (external, according to EN 60947-1)	3

Mechanical values and environment

Connection type	according to IEC 61076-3-117, variant 14, screened, Profinet I/O cable, at least cat. 5e
Installation orientation	Door hinge DIN right
Switching frequency	0.25 Hz
Degree of protection	IP54
Ambient temperature	-20 ... +55 °C
Locking force FZh	2000 N
Guard locking principle	Open-circuit current principle

Components

Handle module MGB-H-AA1A2-R-106049

Locking modules MGB-L2B-PNA-R-121848

Downloads

Download Complete Package (ZIP, 6.5 MB)

Shipping details

Item designation	MGB-L2HB-PNA-R-121849
Gross weight	5.7 kg
Customs tariff number	85371098
ECLASS	27-27-24-05 Safety-related transponder switch with guard locking
