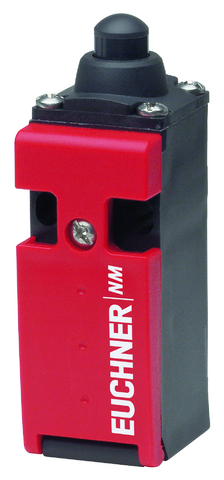

Euchner NM11WOK-MC2069 Safety switch, rounded plunger

The plastic-encapsulated safety switches of design NM are used for monitoring the position of safety doors and moving machine components. Every user can thus employ the optimum actuating element for his/her application. The easy adjustability of the actuator heads in 4 approach directions permits maximum flexibility. Two basic housings are available with up to 3 switching contacts. The compact design, as well as the option of any installation orientation, means that these switches can be integrated with all automation and assembly fields. Safety switch NM.AV/NM.AL, hinged actuator as solid shaft, short housing. Safety switch NM.WO with a domed plunger, short housing and has a cable entry of M16 x 1.5. Features Protective insulation with glass fibre-reinforced plastic, degree of protection IP67 Long mechanical life 5 different actuating heads for the same basic housing Minimum dimensions combined with maximum functionality Simple, rapid conversion in 4 approach directions 3 cable entries laterally and from below (type NM11..., NM02...,NM12..., NM03...) in the long housing Large connection space of the individual contact elements Up to 3 switching contacts
