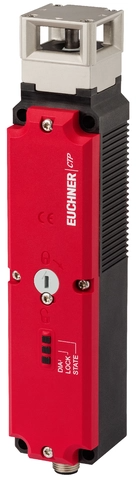

CTP-L2-AP-M-HA-AZ-SA-124729 (Order no. 124729)

Transponder-coded safety switch CTP-AP, M12

Safety switch with guard locking and integrated evaluation electronics
Short circuit monitoring
2 safety outputs (semiconductor outputs)
Up to category 4 / PL e according to EN ISO 13849-1
With plug connector M12
Multicode
Door monitoring output
Approach directions A, B and C (delivery state)

Description

Approach direction

Horizontal - Can be adjusted in 90° steps

Multicode evaluation

Every suitable actuator is detected by the switch.

Guard locking type

CTP-L2

Guard locking actuated by power-ON and released by spring force (open-circuit current principle).

Connector assignment

Pin	Designation	Function	Connecting cable conductor coloring
1	IMP	Operating voltage of guard locking solenoid, 24 V DC	WH
2	UB	Operating voltage of AP electronics, 24 V DC	BN
3	FO1A	Safety output, channel 1	GN
4	FO1B	Safety output, channel 2	YE
5	OI	Diagnostic output	GY
6	OD	Door monitoring output	PK
7	0 V UB	AP electronics operating voltage, 0 V	BU
8	IMM	Guard locking solenoid operating voltage, 0 V	RD

Technical data

Approvals

Workspace

Repeat accuracy R

according to EN 60947-5-2

10 %

Electrical connection values

Fuse	external (operating voltage UB)	0.25 - 8 A
	external (solenoid operating voltage IMP)	0.5 - 8 A
Power consumption		6 W
Rated insulation voltage Ui		50 V
Rated impulse voltage Uimp		0.5 kV
Operating voltage DC	UUB	24 V DC -15% - +15% reverse polarity protected, regulated, residual ripple<5%, PELV
EMC protection requirements	Acc. to EN IEC 60947-5-3
Utilization category	DC-13	24 V 150 mA (Caution: outputs must be protected with a free-wheeling diode in case of inductive loads)
Solenoid operating voltage DC	UIMP	24 V DC -15% ... +10% reverse polarity protected, regulated, residual ripple<5%, PELV
Solenoid duty cycle		100 %
Safety class	III
Current consumption	IUB	40 mA
	IIMP	400 mA

Mechanical values and environment

Approach speed	max. 20 m/min
Connection type	1 plug connector M12, 8-pin
Extraction force	20 N
Ready delay	max. 1 s
Actuating force	10 N
Installation orientation	any
Switching frequency	max. 0.5 Hz
Mechanical life	1 x 106
Overtravel	5 mm
Retention force	20 N
Degree of protection	IP67/IP69/IP69K (When inserted and secured)
Ambient temperature	with UB = 24 V DC	-20 to 55 °C
Material	Safety switch housing	Reinforced thermoplastic
	Switch head cover	Die-cast zinc
Locking force Fmax	3900 N
Locking force FZh	3000 N (Fzh = Fmax/1.3, depending on the actuator used)
Guard locking principle	Open-circuit current principle

Downloads

Shipping Details

Item designation	CTP-L2-AP-M-HA-AZ-SA-124729
Gross weight	0,538kg
Customs tariff number	85365019000
ECLASS	27-27-24-05 Safety-related transponder switch with guardlocking
