C-M12F08-08X025PV10,0-GA-077752 (Order no. 077752)

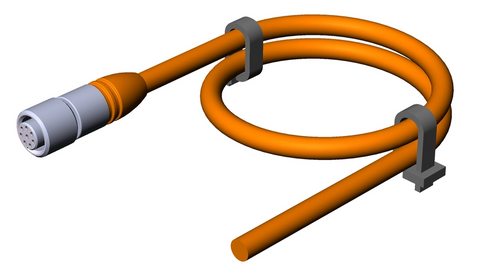

Connecting cable with plug connector M12, 8-pin, 10 m

M12 female plug, 8-pin
Straight plug connector
PVC cable, screened
Cable length 10 m
With flying lead

C-M12F08-08X025PV10,0-GA-077752 (Order no. 077752)

Description

Dimension drawing

Dimensional drawings

1	Female plug M12, 8-pin
2	Terminal assignment as seen from the connection side

Technical data

Approvals

Electrical connection values

Rated voltage	30 V
Cable shielding	connected to union nut (Cu braid, coverage approx. 85%)

Mechanical values and environment

Conductor identification	Color code
Conductor cross-section	0.25 mm²
Number of conductors	8
Dynamic bending radius	15 x cable diameter
Static bending radius	8 x cable diameter
Cable type	straight
Cable diameter	approx. 6.6 mm
Cable length	10 m
Drag chain suitability	no
Cable ambient temperature (dynamic)	+5 - 70 °C
Cable ambient temperature (static)	-25 - 70 °C
Material	Sheath: PVC
Connection 2	Conductor end: trimmed smooth, Connection type: flying lead
Connection 1	Connection type: Plug connector M12x1, Female plug
Tightening torque	0.5 Nm
Cable outlet	straight
Number of pins	8
Degree of protection	IP67 (When inserted and secured)
Plug lock	Screw connection
Material	Plug housing: Plastic
