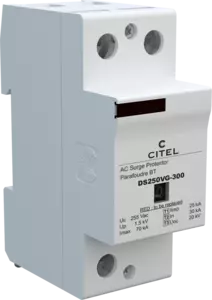

Citel DS250VG-300 SPD, unipolar, type 1+2+3, 230/400V

Product Overview

The DS250VG-300 is an extreme duty Type 1+2+3 single-pole AC surge protector designed to protect electrical installations at the service entrance in high lightning density areas. This heavy-duty SPD features patented VG hybrid technology combining metal oxide varistors with gas-filled spark gaps to handle very high surge currents up to 25kA on 10/350μs impulse, making it particularly suitable for buildings equipped with lightning rods and applications requiring maximum protection against direct and indirect lightning effects.

Key Features:

• Extreme Duty Protection: Type 1+2+3 classification with 25kA lightning impulse current capability (10/350μs) for direct strike protection
• VG Hybrid Technology: Patented combination of high-energy metal oxide varistors and gas-filled spark gaps for superior surge handling
• Zero Leakage Current: Gas tube technology ensures no leakage current to ground at maximum continuous operating voltage
• Low Protection Levels: Industry-leading low residual clamp voltage of 1200V at nominal discharge current
• High Discharge Capacity: Maximum discharge current of 70kA (8/20μs) with 30kA/20kA nominal discharge current
• Thermal Protection: Integral thermal disconnector compliant with UL 60691 with visual fault indicator
• Remote Signaling: Built-in contact for remote status indication (250Vac max, 2A)
• Dual Terminal Design: Double connection terminals for active conductor allowing optimized network connection and in-line wiring up to 250A
• Multi-Configuration Capability: Can be used in common mode or common and differential mode for single-phase, 3-phase, and 3-phase+Neutral networks

Technical Specifications:

• Article Number: DS250VG-300 (Part Number 3300)
• Protection Type: Type 1+2+3 AC surge protector
• Configuration: Single-pole (1P)
• Network Compatibility: 230/480V, 277/480V AC systems (IT, TT, TN, Single, Split Phase, Delta, Wye)
• Max. Operating Voltage (MCOV): 330Vac (UL rated)
• TOV Withstand: 400Vac
• Lightning Impulse Current (Iimp): 25kA (10/350μs, 1 impulse)
• Max. Discharge Current (Imax): 70kA (8/20μs, 1 impulse)
• Nominal Discharge Current (In): 30kA/20kA (8/20μs, 15 impulses)
• Voltage Protection Rating (VPR): 1200V
• Protection Level (Up): 1500V at In
• Short-Circuit Current Rating (SCCR): 100kAIC
• Dimensions: 90mm (H) x 36mm (W) x 67mm (D)
• Connection: Screw terminals, #4 AWG maximum
• Mounting: DIN Rail, 35mm symmetrical
• Operating Temperature: -50°C to +85°C
• Environmental Rating: IP20
• Weight: 7.3 oz (207g)

Compatible Accessories:

• Multi-Pole Configurations: DS252VG-300 (single-phase), DS253VG-300 (3-phase), DS254VG-300 (3-phase+N)
• Combined Protection: DS100EG protector for N-PE protection when used with DS254VG-300/G configuration
• External Bus Bar: For multi-pole assembly connections
• Voltage Variants: DS250VG-120 (120/208V, 120/240V systems), DS250VG-400 (400V systems)

Compliance & Certifications:

• International Standards: IEC 61643-1 Class I and II
• European Standards: EN 61643-11 Class I and II, NF EN 61643-11 Class I and II
• North American Standards: UL1449 3rd Edition Type 4 and Type 2 Location (USA/Canada), CSA C22.2 No. 8-M1986 Class 9091 32/92
• Environmental: RoHS Directive 2002/95/EC compliant

Applications:

Ideal for electrical service entrance protection in high lightning density areas, buildings equipped with lightning rods, telecommunications facilities, industrial plants, data centers, critical infrastructure installations, renewable energy systems, substations, medical facilities, broadcast stations, and any application where maximum protection against direct lightning strikes and heavy surge currents is required, particularly in common mode and differential mode configurations for single-phase, 3-phase, and 3-phase+Neutral AC networks up to 480V.
