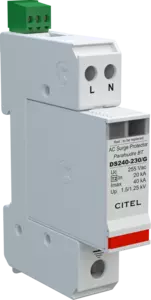

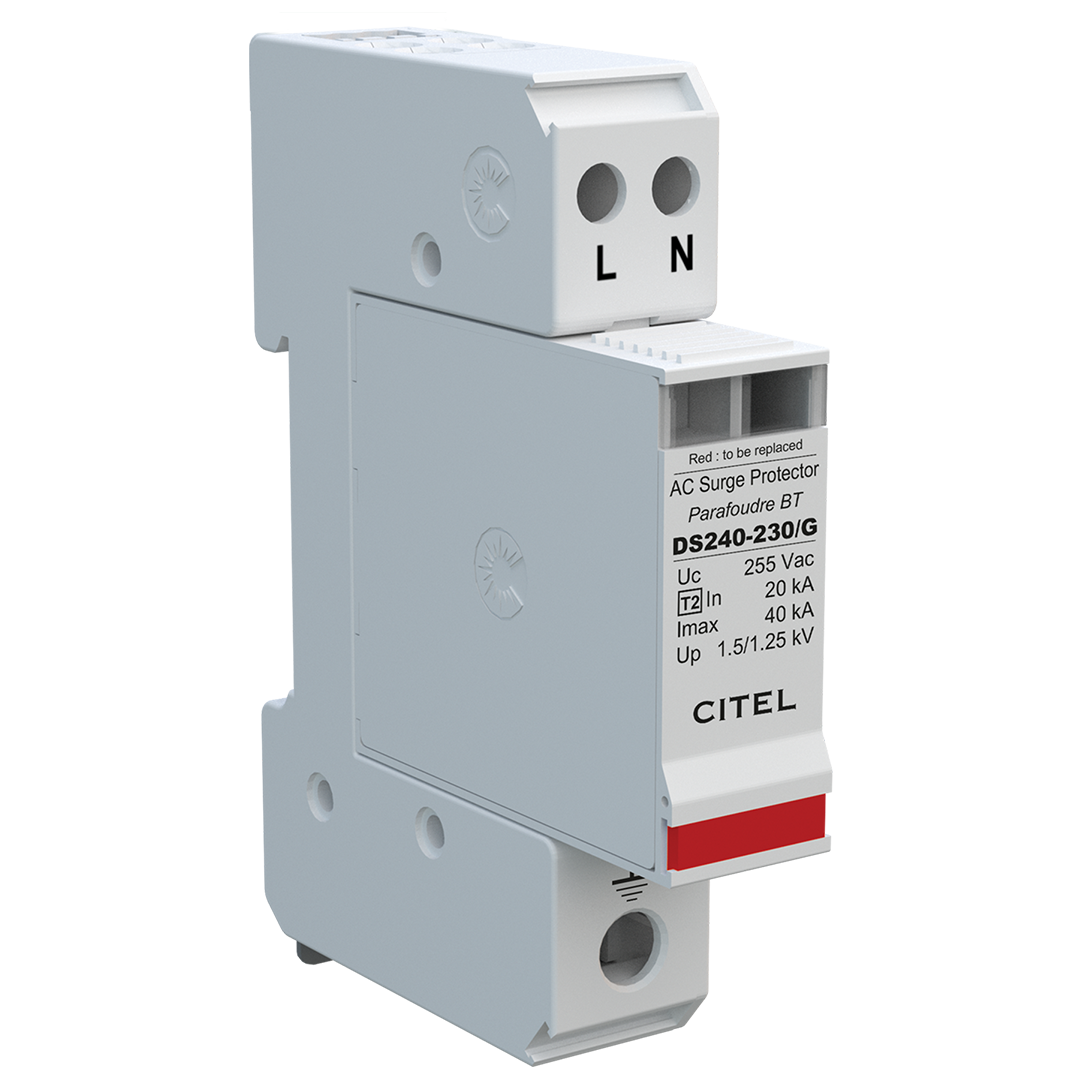

Citel DS240S-230/G SPD, compact, type 2, 1-phase, 20kA

Product Overview

The DS240S-230/G is a compact Type 2 (or Type 3) AC surge protector designed to protect single-phase networks at the main switchboard level in 230V applications. This modular SPD features hybrid MOV+GSG (Metal Oxide Varistor + Gas-filled Spark Gap) technology with integrated thermal disconnectors, providing both common mode and differential mode protection with pluggable modules, a fixed base for easy maintenance, and built-in remote signaling capability for enhanced monitoring.

Key Features:

• Hybrid Protection Technology: Combines MOV and gas-filled spark gap (GSG) for enhanced surge suppression with no residual current
• Dual Mode Protection: Provides both common mode (L-PE, N-PE) and differential mode (L-N) protection
• Compact Modular Design: Pluggable module with fixed base configuration for rapid maintenance and replacement without system shutdown
• High Discharge Capacity: Nominal discharge current of 20kA with maximum discharge current of 40kA (8/20μs)
• Remote Signaling: Integrated changeover contact output for remote status monitoring and facility management integration
• Thermal Protection: Equipped with thermal disconnectors and visual fault indicators for standards compliance
• UL1449 Type 4CA: Certified for use in North American applications including hazardous locations (UL121201)
• 10-Year Warranty: Long-term reliability with comprehensive manufacturer warranty
• Zero Leakage Current: Gas spark gap technology ensures no residual current to ground
• Easy Installation: DIN rail compatible with screw terminal connections for flexible mounting

Technical Specifications:

• Article Number: DS240S-230/G (Part Number 311731)
• Protection Type: Type 2 (or Type 3) AC surge protector
• Configuration: Single-phase (L-N-PE)
• Network Voltage: 230V single-phase (suitable for 230/400V systems)
• AC System Compatibility: TT, TN systems
• Max. AC Operating Voltage: 255Vac
• Nominal Discharge Current (In): 20kA (8/20μs)
• Max. Discharge Current (Imax): 40kA per module (8/20μs)
• Total Max. Discharge Current: 40kA
• Short-Circuit Current Rating: 10,000A
• Residual Current: None (zero leakage)
• Connection Type: Screw terminals, 1.5-10mm² (L/N), 2.5-25mm² (PE)
• Mounting: DIN Rail, 35mm symmetrical (EN 60715)
• Operating Temperature: -40°C to +85°C
• Protection Modes: Common and differential mode

Compatible Accessories:

• Voltage Variants: DS240S-120/G (120V systems), DS240S-280/G (280V systems), DS240S-320/G (320V systems), DS240S-400/G (400V systems)
• Common Mode Only: DS240S-230 (without differential mode protection, Part Number 311711)
• Non-Signaling Version: DS240-230/G (without remote signaling, Part Number 311721)
• Updated Model: DAC40CS-11-275 (latest innovation with enhanced features)
• Hazardous Location Variants: DS240S-230-Ex, DS240S-230/G-Ex (explosion-proof versions)

Compliance & Certifications:

• International Standards: IEC 61643-11, EN 61643-11
• North American Standards: UL1449 Edition 5 Type 4CA, CSA certified
• Hazardous Locations: UL121201 compliant
• European Certification: TÜV Süd certified
• International Certification: EAC (Eurasian Conformity)
• Environmental: RoHS compliant

Applications:

Essential for single-phase main switchboard protection in commercial buildings, residential installations, industrial facilities, office complexes, retail stores, telecommunications equipment rooms, data centers, educational institutions, healthcare facilities, hospitality venues, and any 230V single-phase electrical distribution system requiring Type 2 surge protection with both common and differential mode capabilities, particularly in applications where remote monitoring, rapid maintenance access, and compliance with hazardous location requirements are critical operational needs.
