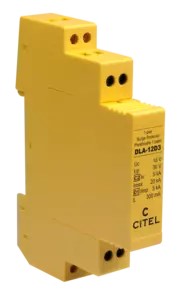

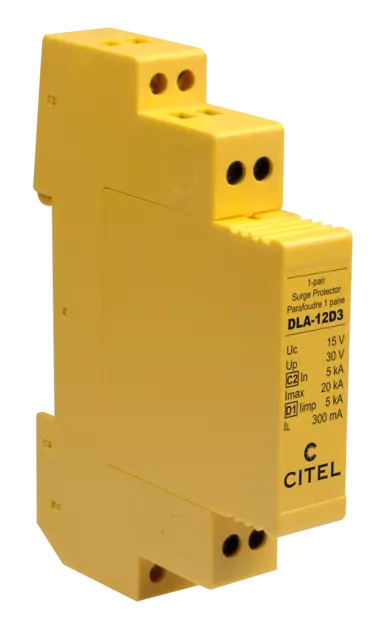

Citel DLA-12D3 SPD, 1-pair, Din rail, plug-in, 12V
Citel DLA-12D3 SPD, 1-pair, Din rail, plug-in, 12V

Citel DLA-12D3 SPD, 1-pair, Din rail, plug-in, 12V

This DIN rail plug-in data surge protector safeguards RS232 and RS485 networks, providing 20 kA maximum discharge current. Designed for high current data transmission, it offers reliable protection for industrial environments with differential and common mode safety features.
Vendor: Citel
SKU: 6402011
Availability: In stock
Product type: Control Panel
Please hurry! Only 98 left in stock
Ask an expert
Description
Description
x
This DIN rail plug-in data surge protector safeguards RS232 and RS485 networks, providing 20 kA maximum discharge current. Designed for high current data transmission, it offers reliable protection for industrial environments with differential and common mode safety features.
Specifications
Specifications
x
IP RatingIP20
Country of OriginFrance
Compliance/CertificationsEN 61643-21 / IEC 61643-21 / UL497B / UL Listed
Temperature: Operating-40°C to 85°C
Packaging size / unit pc(s)
Material: Product HousingThermoplastic
Connection TypeBy screw terminal: cross section 0.5-2.5mm²
Operating Voltage15 VDC
Mounting TypeSymmetrical rail 35 mm (EN 60715)
Documents
Documents
x
Download Datasheet
