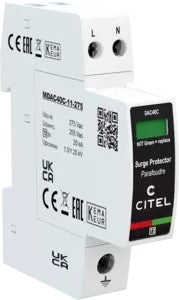

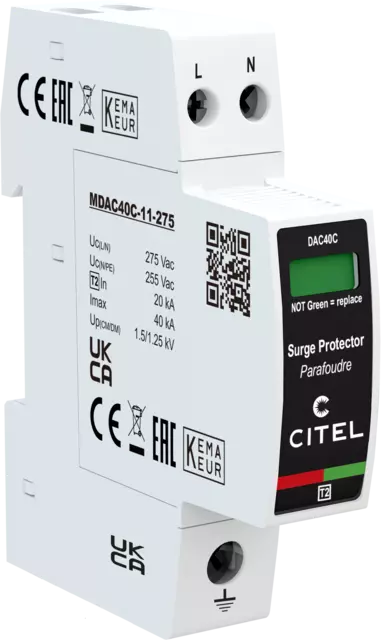

Citel DAC40C-11-275 SPD, compact, type 2/3, 1-phase, 230V
Citel DAC40C-11-275 SPD, compact, type 2/3, 1-phase, 230V

Citel DAC40C-11-275 SPD, compact, type 2/3, 1-phase, 230V

This single-phase Type 2 surge protector is ideal for 230 V networks, offering up to 40 kA of discharge protection and pluggable design. It includes advanced safety features like thermal fuses and disconnection indicators, making it suitable for critical electronic equipment protection.
Vendor: Citel
SKU: 821520211
Availability: In stock
Product type: Solar PV Balance Of System
Please hurry! Only 71 left in stock
Ask an expert
Description
Description
x
This single-phase Type 2 surge protector is ideal for 230 V networks, offering up to 40 kA of discharge protection and pluggable design. It includes advanced safety features like thermal fuses and disconnection indicators, making it suitable for critical electronic equipment protection.
Specifications
Specifications
x
IP RatingIP20
Country of OriginFrance
Compliance/CertificationsEN 61643-11 / IEC 61643-11 / KEMA / UL1449 ed.5
Temperature: Operating-40°C to 85°C
Packaging size / unit pc(s)
Material: Product HousingThermoplastic
Connection TypeBy screw terminals: L/N = 1.5-10mm² (16mm² rigid) or PE = 2.5- 25mm² (35mm² rigid)
Operating Voltage275 VAC
Mounting TypeSymmetrical rail 35 mm (EN 60715)
Documents
Documents
x
Download Datasheet
