Description

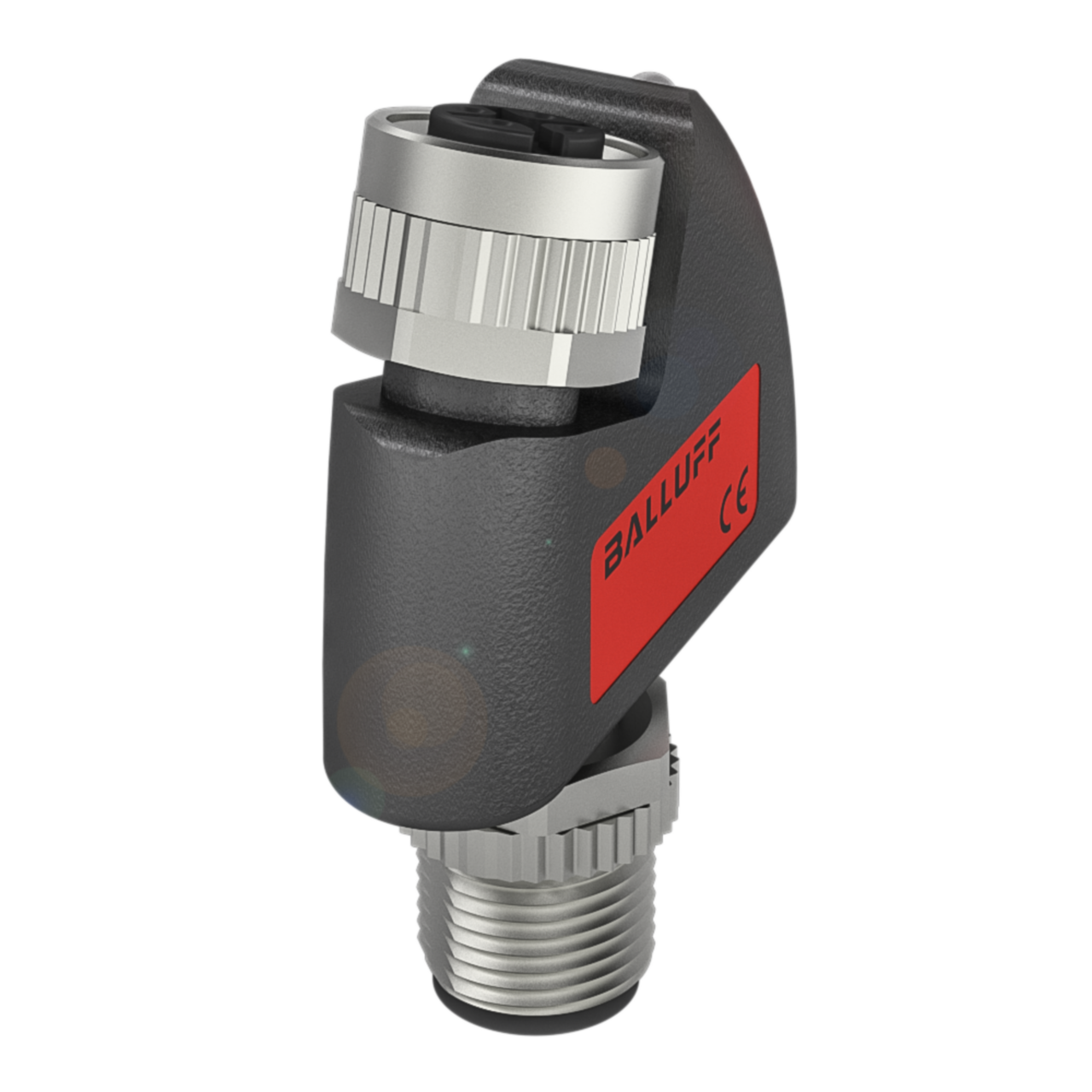

xThis signal converter translates a 0-20mA analogue current signal into an IO-Link communication protocol, allowing conventional current-loop sensors to be integrated into IO-Link based control architectures. It connects via M12x1 4-pin A-coded male and female connectors and operates on a supply of 18 to 30.2 VDC. The PA housing with FKM gasket achieves an IP67 rating when correctly threaded in, suiting installation within industrial field wiring and panel environments.
Key specifications
- IP rating: IP67, when threaded in
- Operating voltage: 18 - 30.2 VDC
- Rated voltage: 24 V
- Connection: M12x1 / Male / 4-pin / A-coded - M12x1-/ Female / 4-pin / A-coded
- IO-Link: IO-Link 1.0
Specifications
x| IP Rating | IP67, when threaded in |
| Compliance/Certifications | CE WEEE |
| Material: Housing / Grip | PA |
| Material: Gasket | FKM 75 |
| Part Depth (mm) | 50.4mm |
| Part Width (mm) | 14.2mm |
| Part Height (mm) | 40mm |
| Connection Type | M12x1 / Male / 4-pin / A-coded - M12x1-/ Female / 4-pin / A-coded |
| Data Transmission Rate | COM2 (38.4 kBaud) |
| IO-Link Type | IO-Link 1.0 |
| Operating Voltage | 18 - 30.2 VDC |
| Rated Voltage | 24 V |
| Current consumption | 30 mA |
