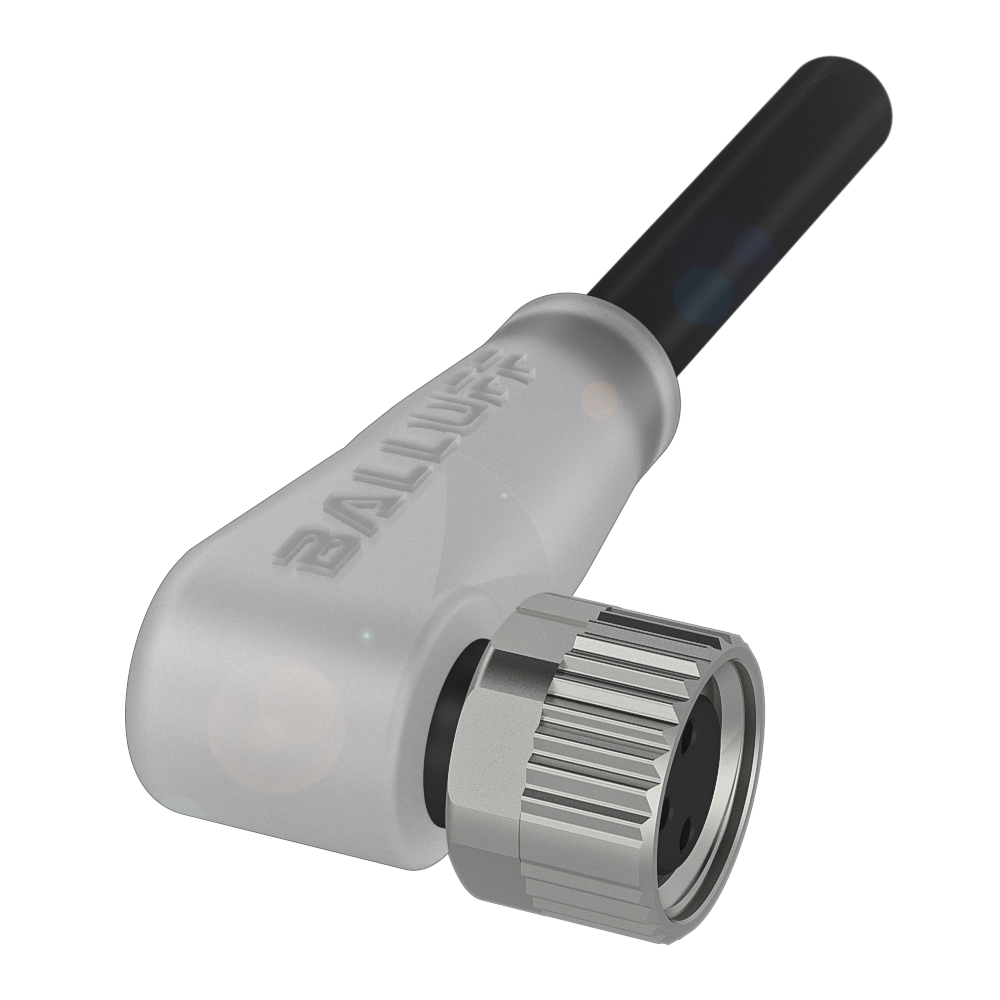

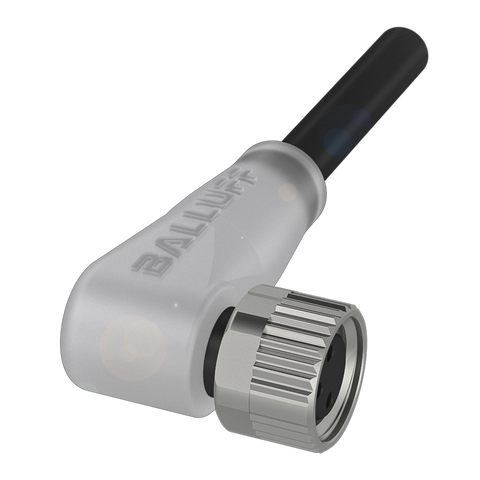

Balluff Cordset, M8 Female 90deg A-code, 3-pin, 5m

Product Features

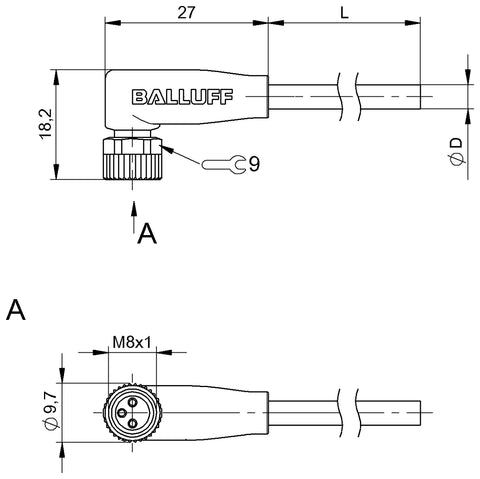

• Connection: M8x1-Female, angled, 3-pin, A-coded
• Power indicator: Green LED
• Function indicator (Pin 4): LED yellow
• Switching output: NPN normally open (NO)
• Cable: PUR black, 5 m, drag chain compatible
• Number of conductors: 3
• Conductor cross-section: 0.34 mm²
• Cable temperature, fixed routing: -50 to 90 °C
• Cable temperature, flexible routing: -25 to 90 °C
• Operating voltage Ub: 30 VDC
• Rated current (40 °C): 4.0 A
• IP rating: IP67, IP69K
• Approval/Conformity: CE, cULus, WEEE
