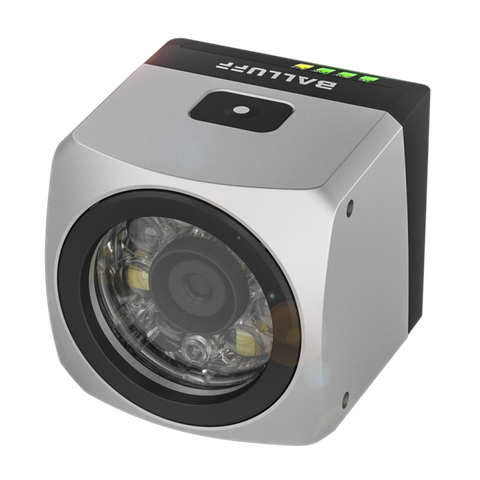

Balluff BVS ID-M1280CF1-L3-000 Stationary optical ID sensor
Balluff BVS ID-M1280CF1-L3-000 Stationary optical ID sensor

Balluff BVS ID-M1280CF1-L3-000 Stationary optical ID sensor

This smart automation and monitoring system is designed for optical identification, offering reliable code analysis and reading capabilities. It is equipped with advanced condition monitoring features, making it ideal for industrial environments requiring robust and precise data collection. The device's versatility is further enhanced by its multiple interface options, including...
Vendor: Balluff
SKU: BVS0061
Availability: In stock
Product type: Machine Vision & Identification
Please hurry! Only 7 left in stock
Description
Description
x

This smart automation and monitoring system is designed for optical identification, offering reliable code analysis and reading capabilities. It is equipped with advanced condition monitoring features, making it ideal for industrial environments requiring robust and precise data collection. The device's versatility is further enhanced by its multiple interface options, including IO-Link and Gigabit Ethernet.

  • Application: Code analysis and reading
  • Operating Voltage: 18...30 VDC
  • IP Rating: IP67
  • Image Resolution: 1.2 MP (1280 x 960 pixels)
  • Material: Aluminium, Die casting, Painted
  • Dimensions: 56 x 56 x 59 mm
Specifications
Specifications
x
IP RatingIP67
Compliance/CertificationsCE / cULus / FCC / UKCA / WEEE
Compliance/CertificationsCE / cULus / FCC / UKCA / WEEE
Country of OriginGermany
MaterialAluminium / Die casting / Painted with Luxacryl
Part Depth (mm)56mm
Part Width (mm)56mm
Part Height (mm)59mm
Weight (g)240g
Connection TypeConnection 1: 4-pin, A-coded, M12x1-Male / Connection 2: 8-pin, M12x1-Female, X-coded / Connection 3; 5-pin, A-coded, M12x1-Female,
InterfaceIO-Link 1.1 / TCP/UDP IIoT (Gigabit Ethernet)
Mounting TypeScrew M4
Documents
Documents
x
Download Datasheet
