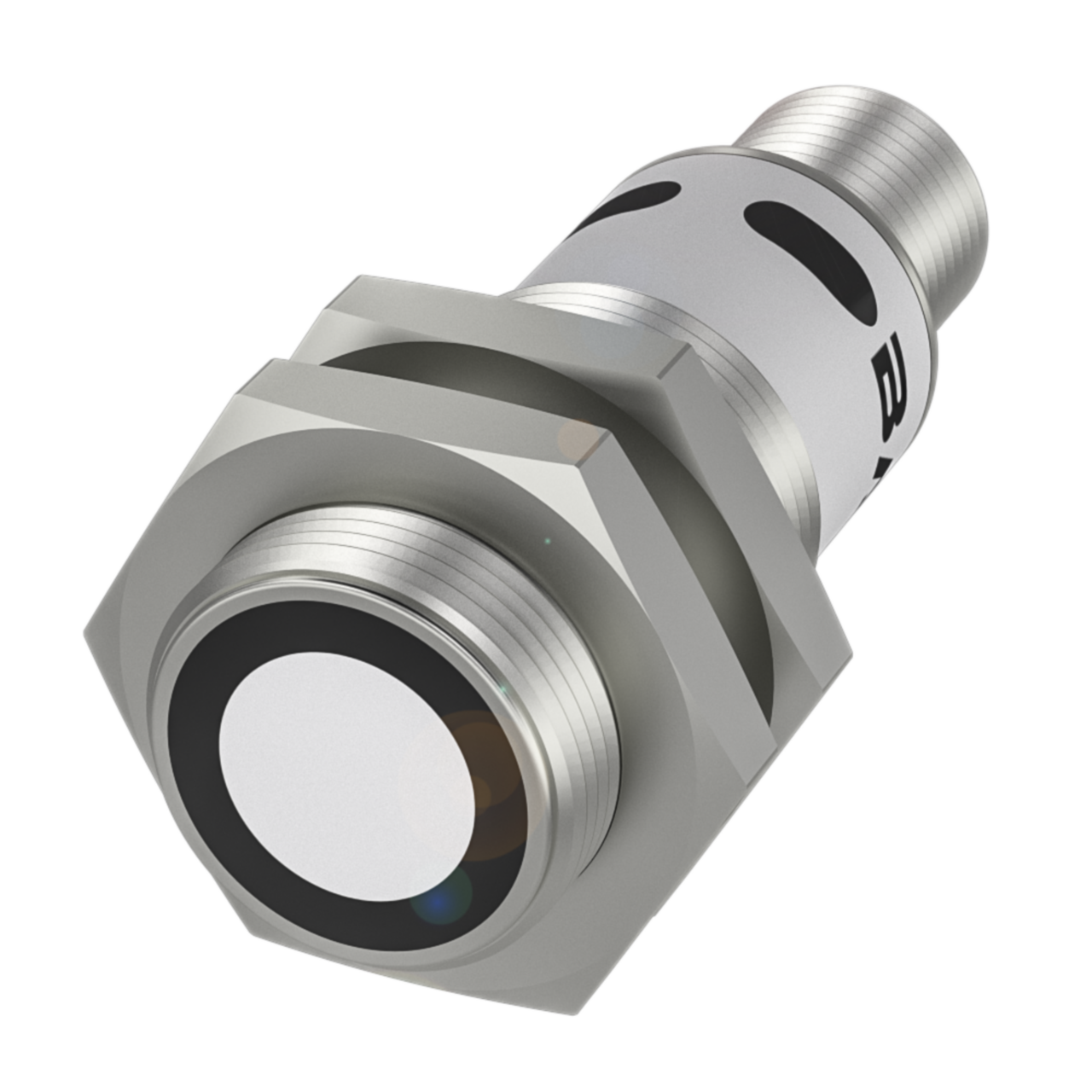

Balluff BUS M18M1-GPXI-12/100-S92G-511 Ultrasonic sensors with a digital output Part number BUS007J

This is an M18-threaded ultrasonic sensor with a digital PNP/NPN push-pull output, providing a rated operating distance of 1000mm and an IO-Link 1.1 interface for parameter setting and diagnostics. It operates from 10 to 30 VDC, switches at up to 10 Hz, and connects via a 5-pin M12x1 male connector. With an IP67-rated brass, nickel-plated and PBT housing, it suits panel and machine applications requiring non-contact detection in industrial environments.

Key specifications

• IP rating: IP67
• Operating voltage: 10 - 30 VDC
• Rated voltage: 24 V
• Connection: M12x1 / Male / 5-pin
• Output: PNP/NPN NO/NC push-pull
• Mounting: Nut M18x1
