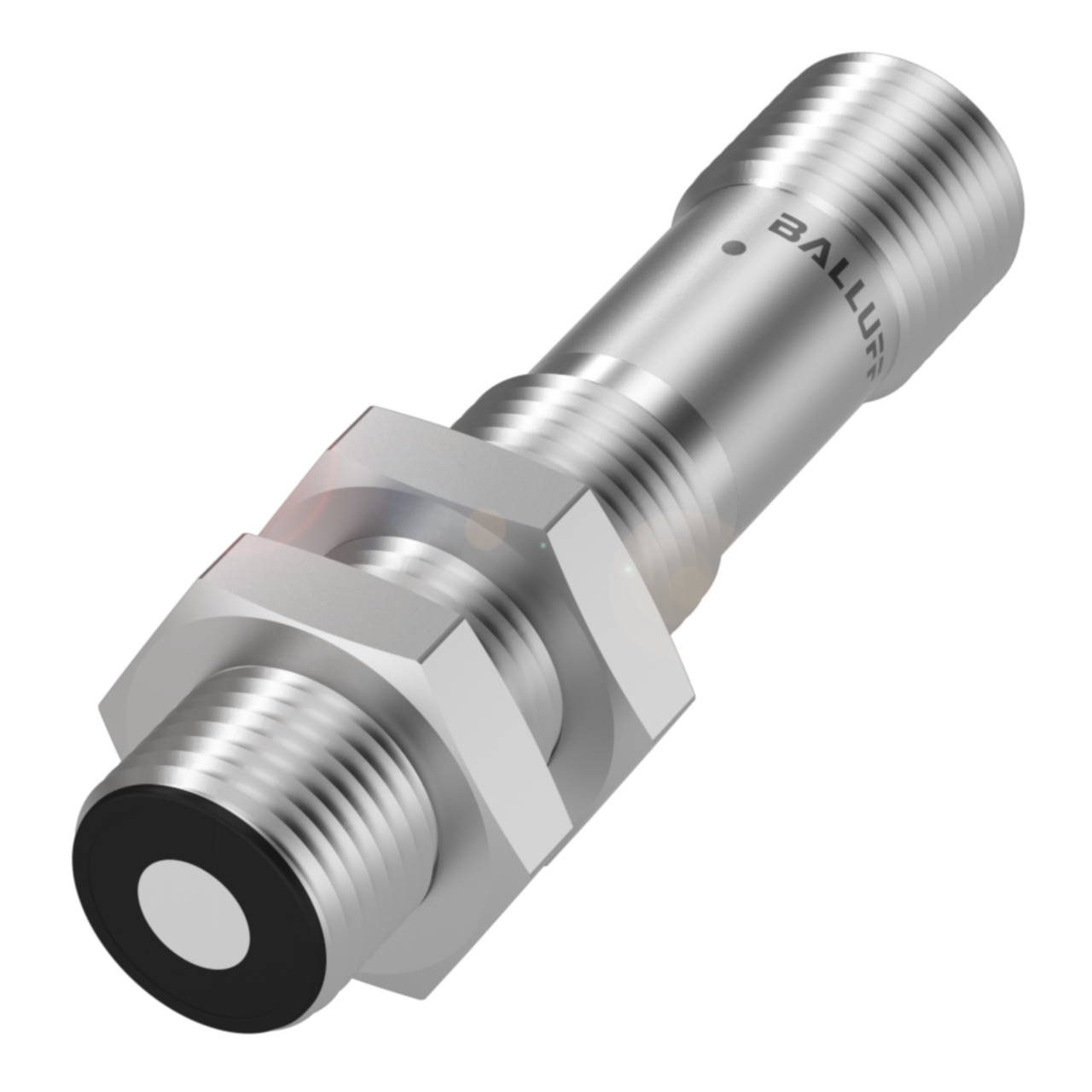

Balluff BUS M12M1-PPX-02/015-S04G Ultrasonic sensor, 1DO Part number BUS0065

This Balluff BUS M12M1-PPX-02/015-S04G is an ultrasonic sensor with a single digital PNP output, configurable as normally open or normally closed, for non-contact object detection at a rated operating distance of 150mm. Housed in nickel-plated brass and PBT with an M12x1, 4-pin male connector, it is rated IP67 and mounts using an M12x1 nut, suiting compact installation in automation panels and machinery. The switching frequency of 25 Hz and operating voltage range of 10-30 VDC make it suitable for standard industrial DC control circuits.

Key specifications

• IP rating: IP67
• Operating voltage: 10 - 30 VDC
• Connection: M12x1 / Male / 4-pin
• Output: PNP normally open/normally closed (NO/NC)
• Mounting: Nut M12x1
