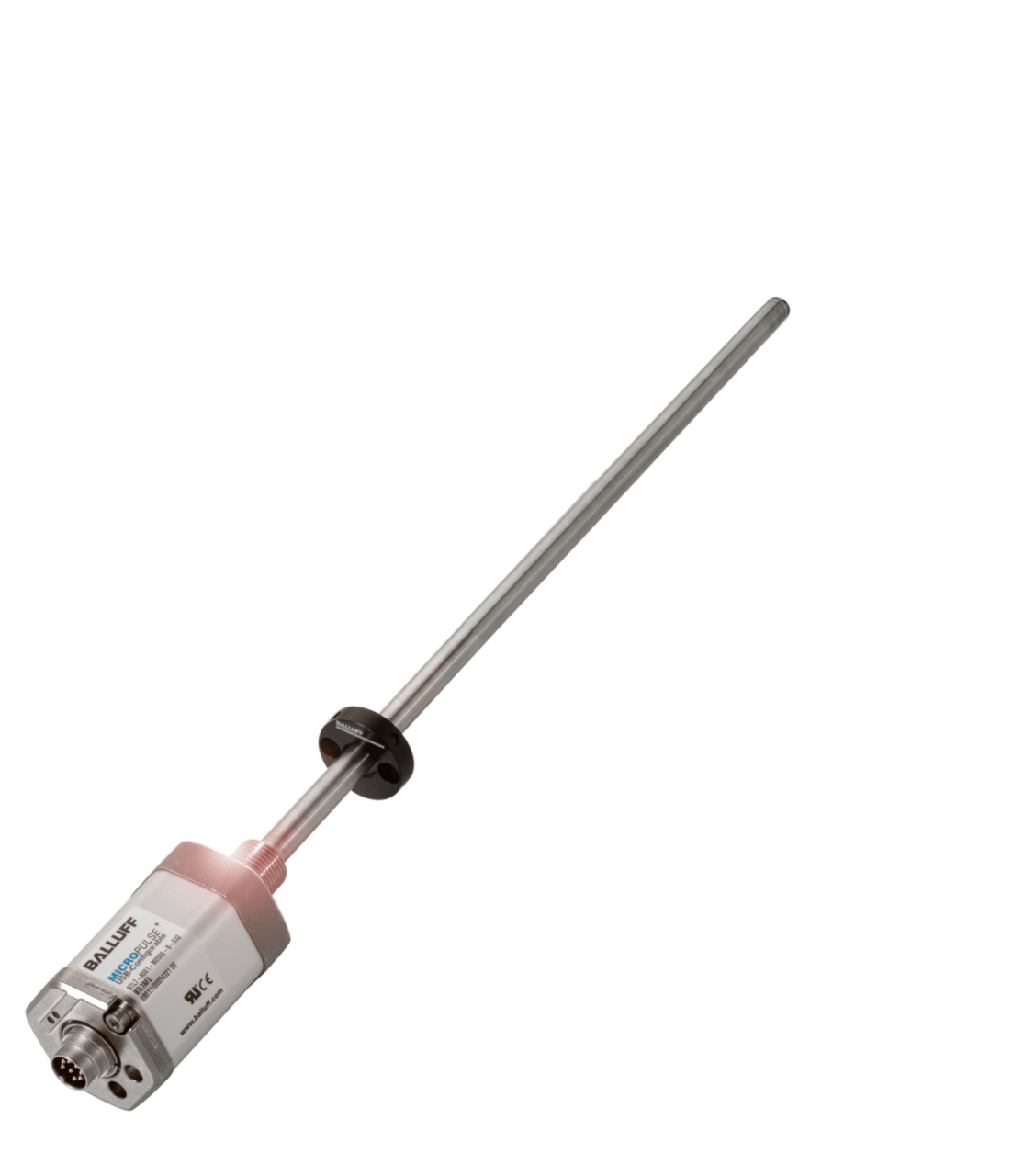

Balluff BTL7-S566-M1400-A-SA211-S147 Magnetostrictive rod Part number BTL28C6

This is a magnetostrictive linear position transducer with a rod-style sensing element, used to provide absolute position feedback in hydraulic cylinders and linear actuators found on industrial machinery. It communicates via an SSI interface and operates from a 10 to 30 VDC supply, with an aluminium housing and IP67 ingress protection suited to demanding factory or mobile equipment environments. The threaded flange mounting allows installation into cylinder end caps or similar fixtures, and the unit carries CE, cULus, EAC and WEEE compliance marks.

Key specifications

• IP rating: IP67
• Operating voltage: 10 - 30 VDC
• Mounting: Threaded flange
