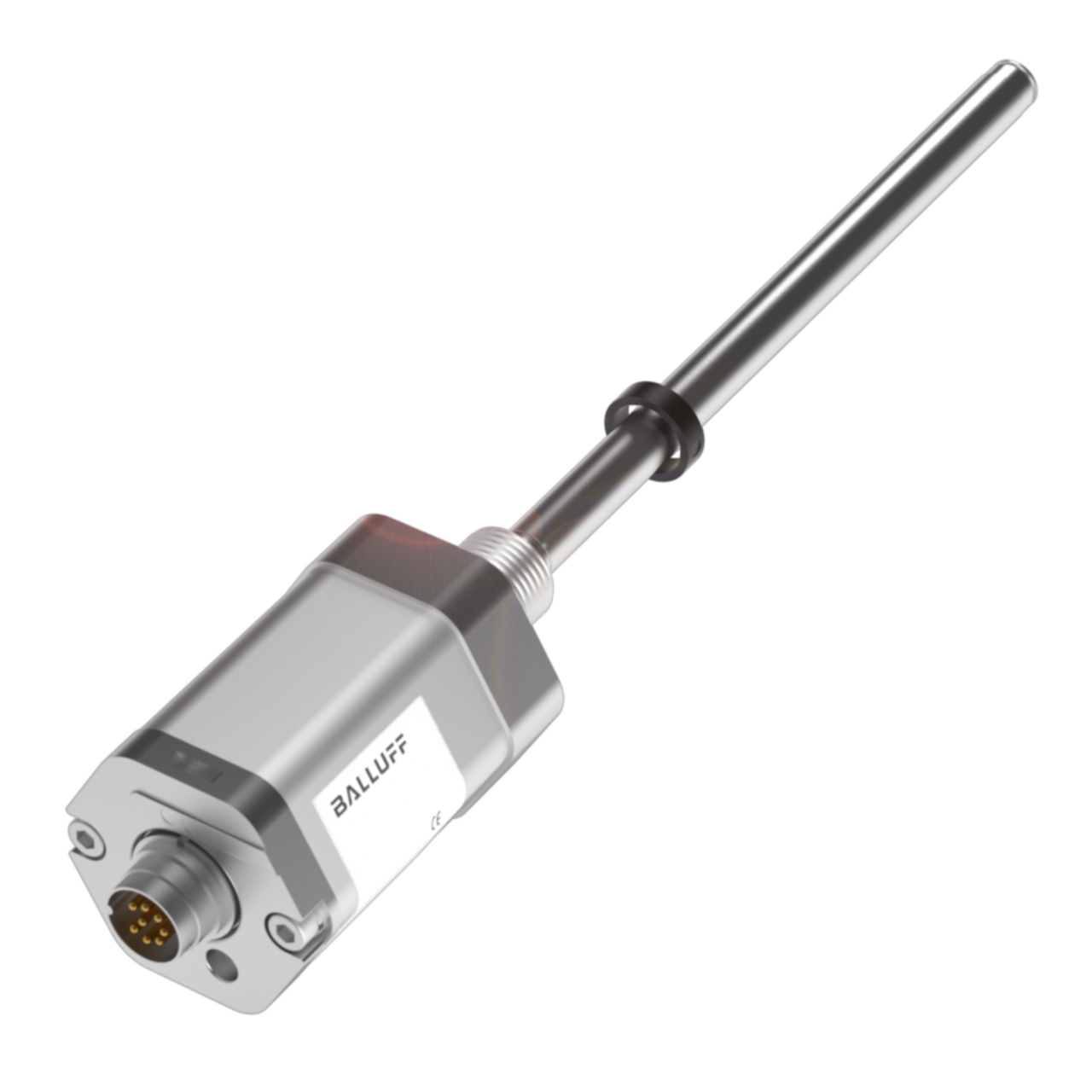

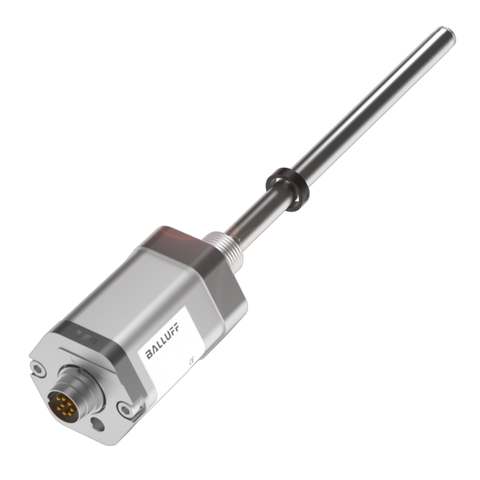

Balluff BTL7-E100-M0100-b-S32 Micropulse linear transducer Part number BTL06YL

This Micropulse linear transducer measures position using a magnetostrictive sensing method housed in an anodized aluminium housing with an FKM O-ring seal, rated IP67 with the connector fitted. It connects via an M16x0.75, 8-pin connector and mounts using a threaded M18x1.5 flange, operating from a 20 to 28 VDC supply...
Vendor: Balluff
Availability: Out Of Stock
Product type: Field Sensing & Connectivity
Please hurry! Only 0 left in stock
Description
Description
x

This Micropulse linear transducer measures position using a magnetostrictive sensing method housed in an anodized aluminium housing with an FKM O-ring seal, rated IP67 with the connector fitted. It connects via an M16x0.75, 8-pin connector and mounts using a threaded M18x1.5 flange, operating from a 20 to 28 VDC supply with a current consumption of 150 mA. Typical use is in industrial automation applications requiring reliable position feedback under demanding environmental conditions, with compliance to CE, UKCA, cULus, DNVGL and WEEE requirements.

Key specifications

  • IP rating: IP67, with connector
  • Operating voltage: 20 - 28 VDC
  • Connection: M16x0.75 / 8-pin
  • Mounting: Threaded flange M18x1.5
