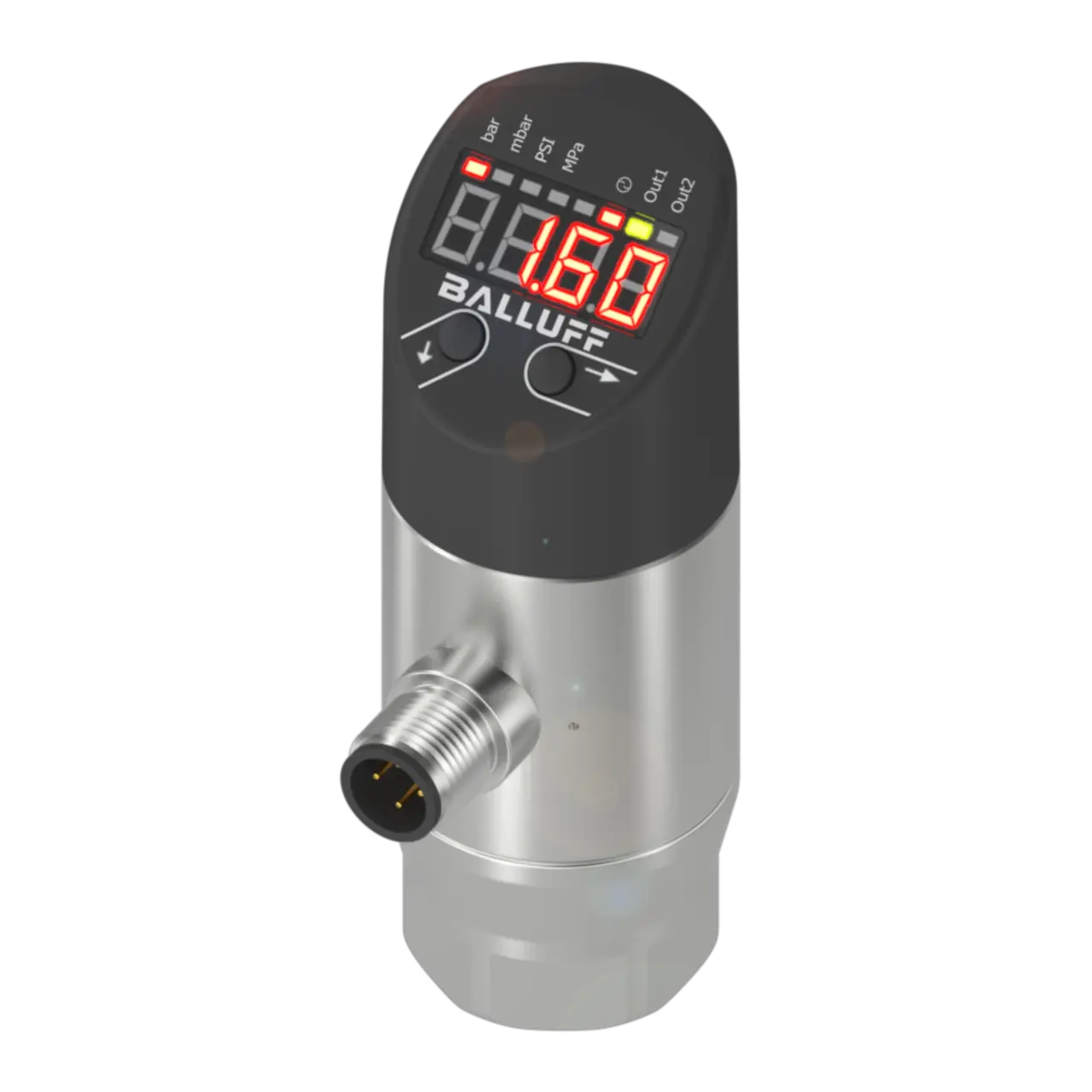

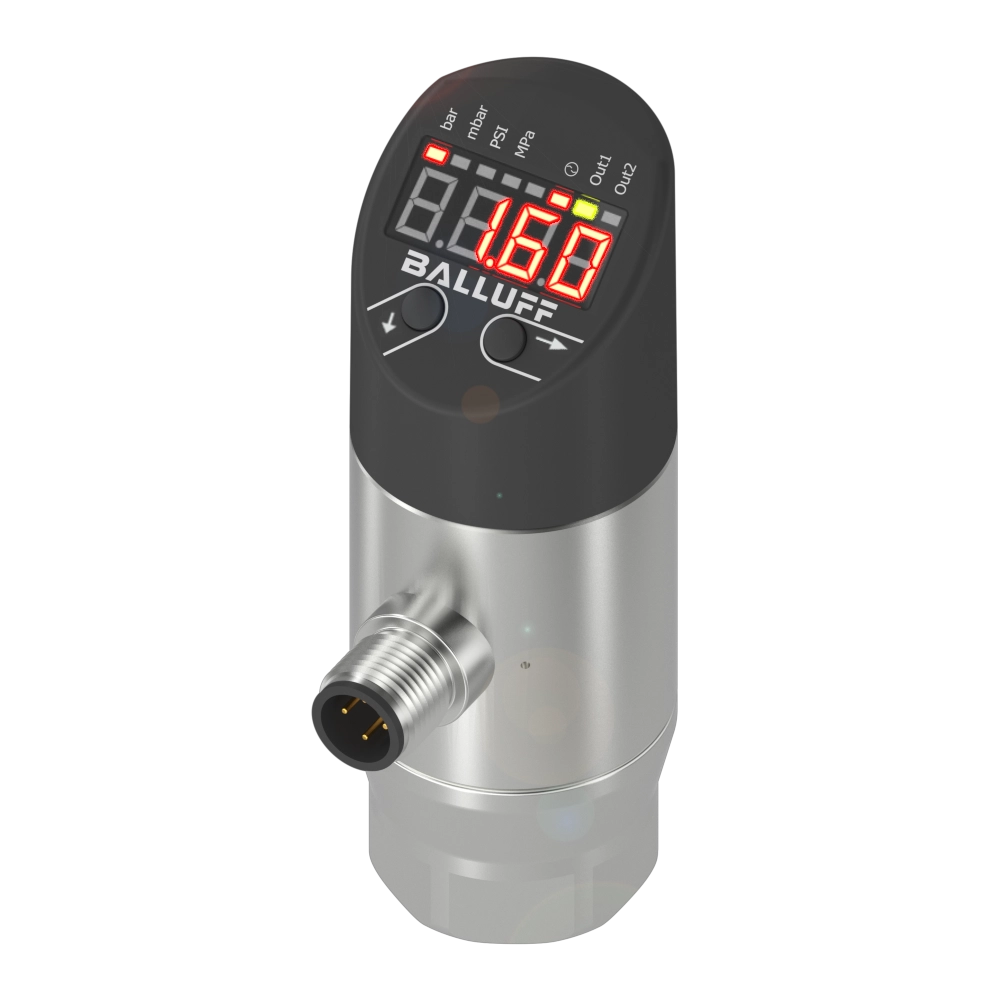

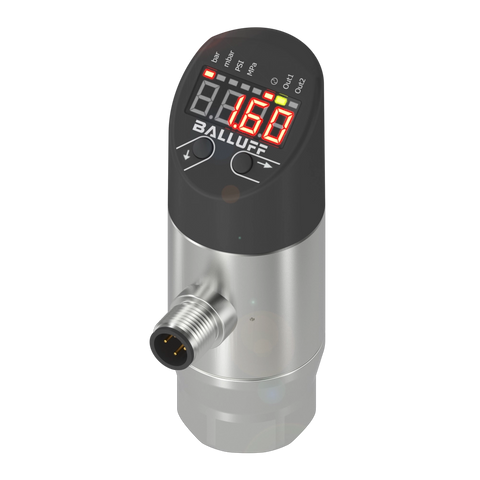

Balluff BSP B010-EV009-P00S2B-S4 Pressure sensor, male, 4-pin
Balluff BSP B010-EV009-P00S2B-S4 Pressure sensor, male, 4-pin

Balluff BSP B010-EV009-P00S2B-S4 Pressure sensor, male, 4-pin

The pressure sensor was developed for pressure monitoring of gases or liquids which are compatible with stainless steel, ceramic and fluoroelastomer (FKM). Depending on the device and mechanical connection, pressure sensors are suitable for various application areas.
Vendor: Balluff
SKU: BSP00Y4
Availability: Out Of Stock
Product type: Field Sensing & Connectivity
Please hurry! Only 0 left in stock
Ask an expert
Description
Description
x
The pressure sensor was developed for pressure monitoring of gases or liquids which are compatible with stainless steel, ceramic and fluoroelastomer (FKM). Depending on the device and mechanical connection, pressure sensors are suitable for various application areas.
Specifications
Specifications
x
IP RatingIP67, when threaded in
Compliance/CertificationsCE UKCA cULus WEEE
Material: Housing / GripPE / Stainless steel
Material: GasketFKM
Weight (g)230g
Connection TypeM12x1 / Male / 4-pin / A-coded
Tightening Torque5Nm
Switching Output2x PNP/NPN NO/NC selectable
Switching Frequency (Hz)170 Hz
Operating Voltage 18 - 30 VDC
InterfaceIO-Link 1.1
Documents
Documents
x
Download Datasheet
