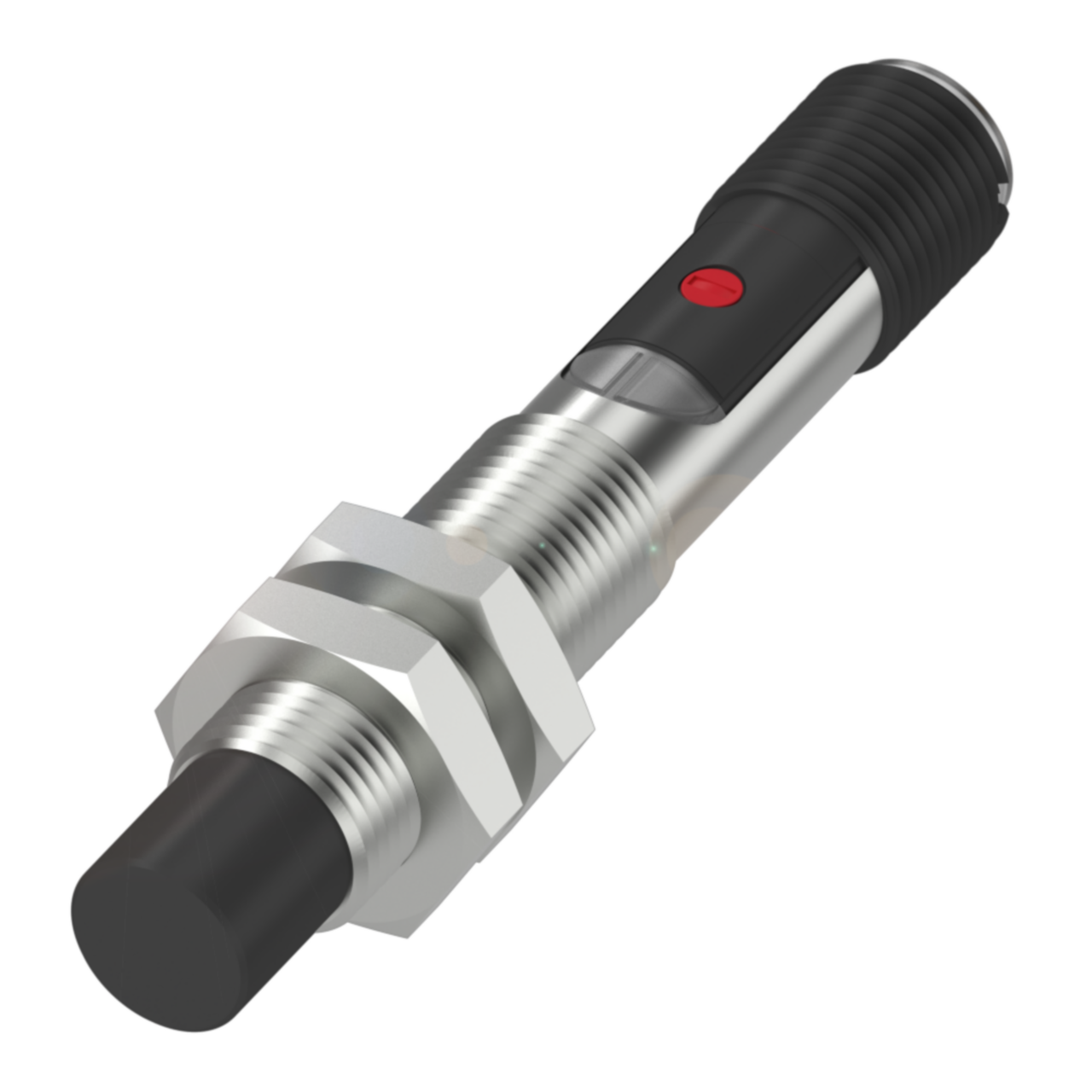

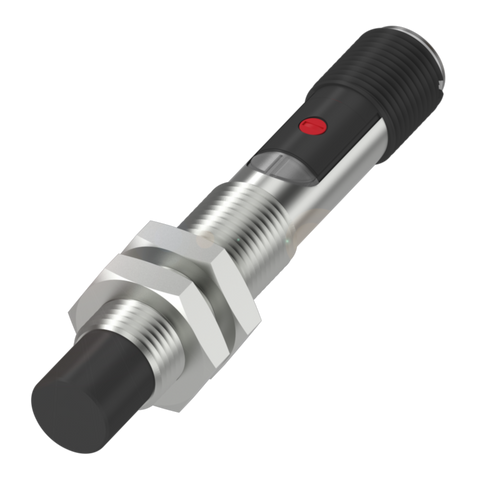

Balluff BOS 5K-PU-LR10-02 Retroreflective sensor, PNP, NO/NC Part number BOS01JT

This Balluff BOS 5K-PU-LR10-02 is a retroreflective photoelectric sensor with PNP output and selectable NO/NC switching, designed to detect objects via reflection from a reflector target up to 10 m away. Its housing is constructed from PCPBT with a PMMA sensing element, and it operates on a 10...30 VDC supply, connected via a 2.00 m PVC cable. Its compact 10.8 x 32.7 x 19.5 mm dimensions suit installation in industrial automation panels and machine builds where space is limited.

Key specifications

• Operating voltage: 10...30 VDC
• Connection: Cable, 2.00 m, PVC
• Dimensions: 10.8 x 32.7 x 19.5 mm
• Material: PCPBT
